TG1315 Non-Rotating Compacted Wire Rope

TG1315 Non-Rotating Compacted Wire Rope

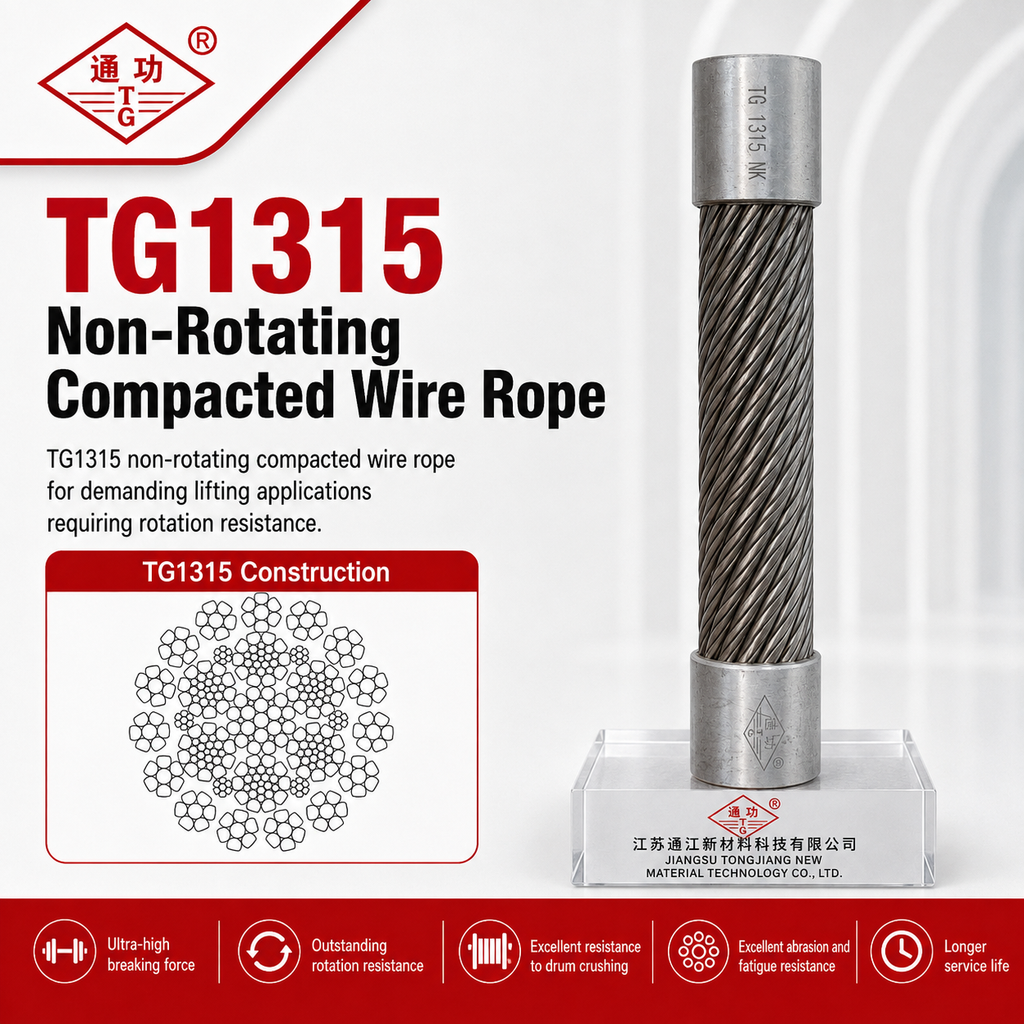

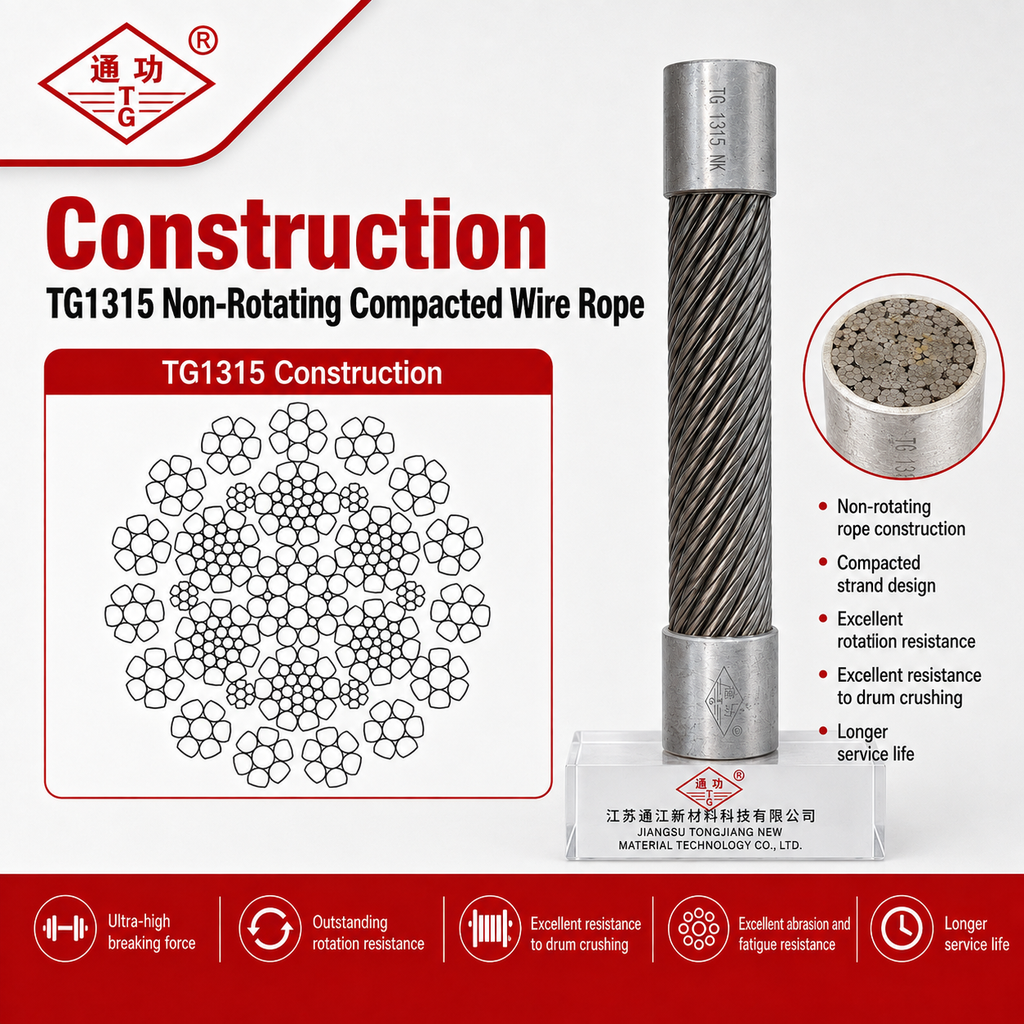

TG1315 Non-Rotating Compacted Wire Rope is a non-rotating rope construction.

Applications requiring rotation resistance: tower cranes, mobile cranes, rotary drilling rigs, crawler cranes, marine cranes.

TG1315 Non-Rotating Compacted Wire Rope

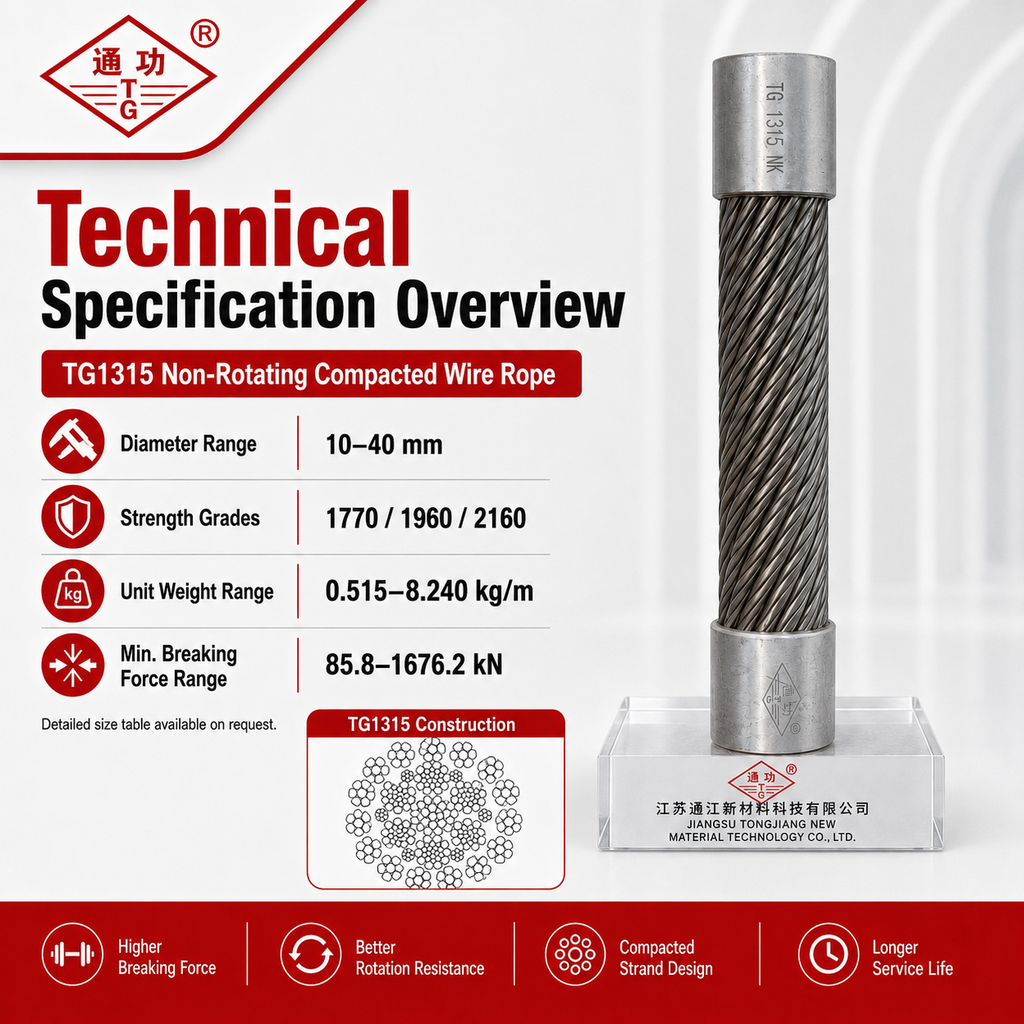

Specifications

Diameter: 10–40 mm. Core: independentsteel (IWRC). Wire grade: 1770, 1960 or2160 N/mm². Finish:bright or galvanized. Lay: right orleft hand, regular or Lang's.Manufactured to EN 12385, ASTM A1023,YB/T 5359 and GB/T 8918. HS code7312.10.
Packing & Delivery

Supplied on wooden or steel reels to 3,000 m, or cut to your required lengths. MOQ 1,000 m, negotiable. Packed for sea freight and shipped CIF. Lead time confirmed at quotation. Payment 30% deposit with balance before shipment.
Certification & Documentation

Manufactured under ISO 9001:2015, with ISO 14001, 45001 and 50001 management systems certified by CICC. CCS Works Approval held for marine rope, 10–80 mm. Every shipment ships with a mill certificate and test report. Additional documentation available on request.

Technical Specification

TG1315 weight and minimum breaking force by diameter
Diameter mm Weight kg/m MBF 1770 kN MBF 1960 kN MBF 2160 kN
100.51585.895.1104.8
110.623103.9115.0126.8
120.742123.6136.9150.9
130.870145.1160.7177.0
141.009168.3186.3205.3
161.318219.8243.4268.2
181.669278.1308.0339.4
202.060343.4380.2419.0
222.493415.5460.1507.0
242.966494.5547.5603.4
263.481580.3642.6708.2
284.038673.0745.3821.3
304.635772.6855.5942.8
325.274879.1973.41072.7
345.953992.41098.91211.0
366.6741112.61232.01357.7
387.4371239.61372.71512.7
408.2401373.51521.01676.2

Scroll the table sideways to see all columns.

MBF = minimum breaking force at the stated wire tensile grade (N/mm²). Weights are nominal. Diameters outside 10–40 mm and non-standard grades are manufactured to order — request a quote.

About this construction

What makes TG1315 different?

Breaking force. At every diameter it carries more than the other non-rotating constructions Tongjiang makes, roughly 11% above 35W×K7 European at the same size. It's the company's own development rather than a standard catalog geometry.
When would I choose it over TG916?

TG1315 for maximum force at a fixed diameter. TG916 comes with the plastic-injected core as standard, so it suits continuous-duty drilling where internal wear is the limiting factor rather than load.
Why does the range stop at 40 mm?

That's the manufactured range for this construction. Above 40 mm, 35W×K7 European runs to 54 mm — tell us your diameter and we'll confirm what's available.
Is it rotation-resistant as well as strong?

Yes, that's the point. Ultra-high breaking force with outstanding rotation resistance, plus excellent drum crush and abrasion resistance. It's specified where a lift needs all of those at once.

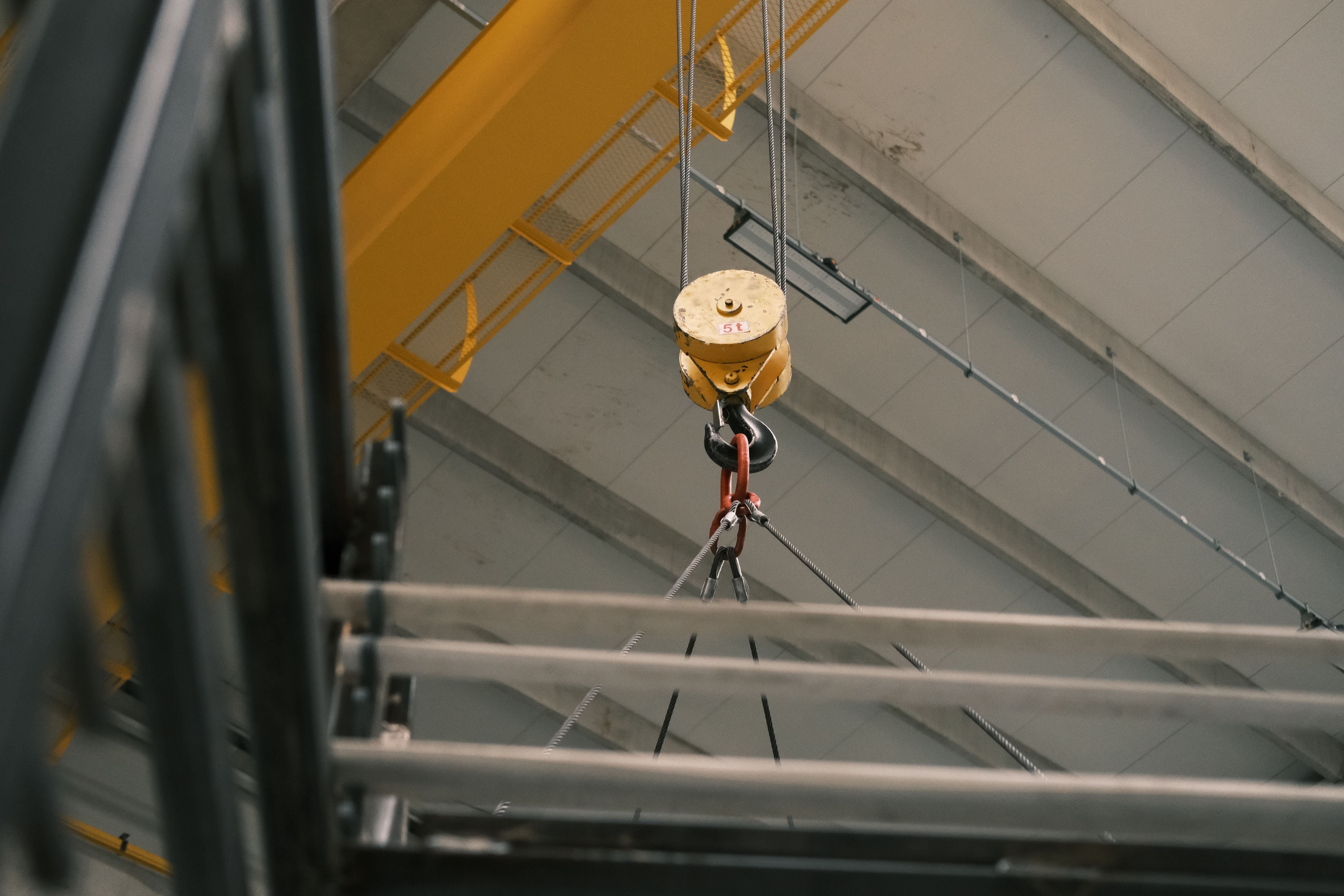

A close-up view of a yellow industrial overhead crane hook suspended by cables from a metal ceiling structure inside a warehouse or factory.

Selecting TG1315

The most force per millimetre

TG1315 carries more load at a given diameter than anything else in the non-rotating range. At 30 mm, 1960 grade, that's 855 kN against 767 kN for 35W×K7 European and 653 kN for 19×K7. When the machine fixes the diameter and you need every kilonewton, this is the construction.
See construction guide
A worker in a gray uniform and orange hard hat operates a large yellow and blue industrial machine inside a factory or workshop with concrete walls and metal equipment.

Manufacturing

Drawn, stranded and closed in-house

Every rope starts as Baosteel or Shagang wire rod and runs through our own servo-driven drawing and planetary stranding machines. German Fosser lubricant is applied at closing, and each rope is tensile tested against its declared breaking force before it ships.
Factory & quality

Ordering

Cut, reeled and shipped to spec

Reels run to 3,000 m, with custom lengths cut to order. Every shipment carries a mill certificate and test report, packed for sea freight and shipped CIF from the Yangtze Delta.

MOQ 1,000 m, negotiable.
