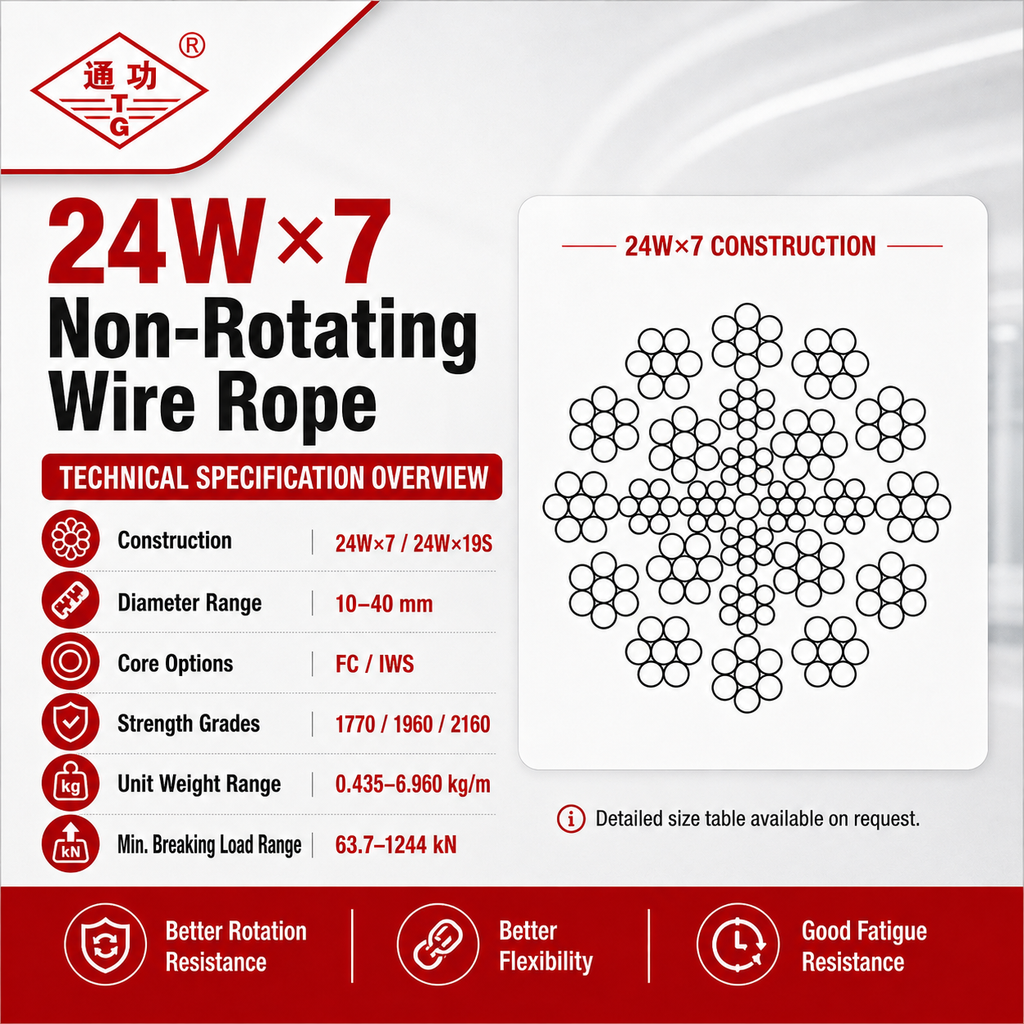

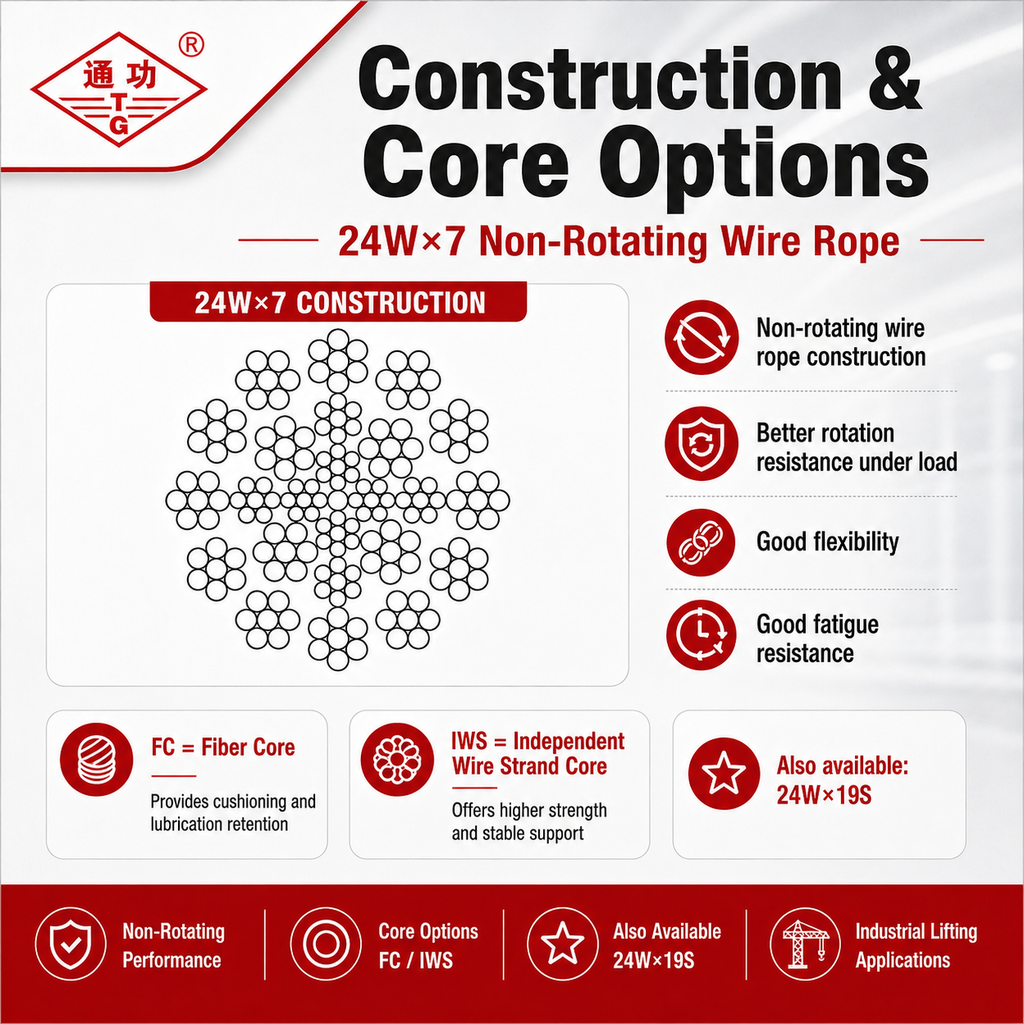

24W×7 Non-Rotating Wire Rope is a non-rotating rope construction, available in 24W×7, 24W×19S variants.

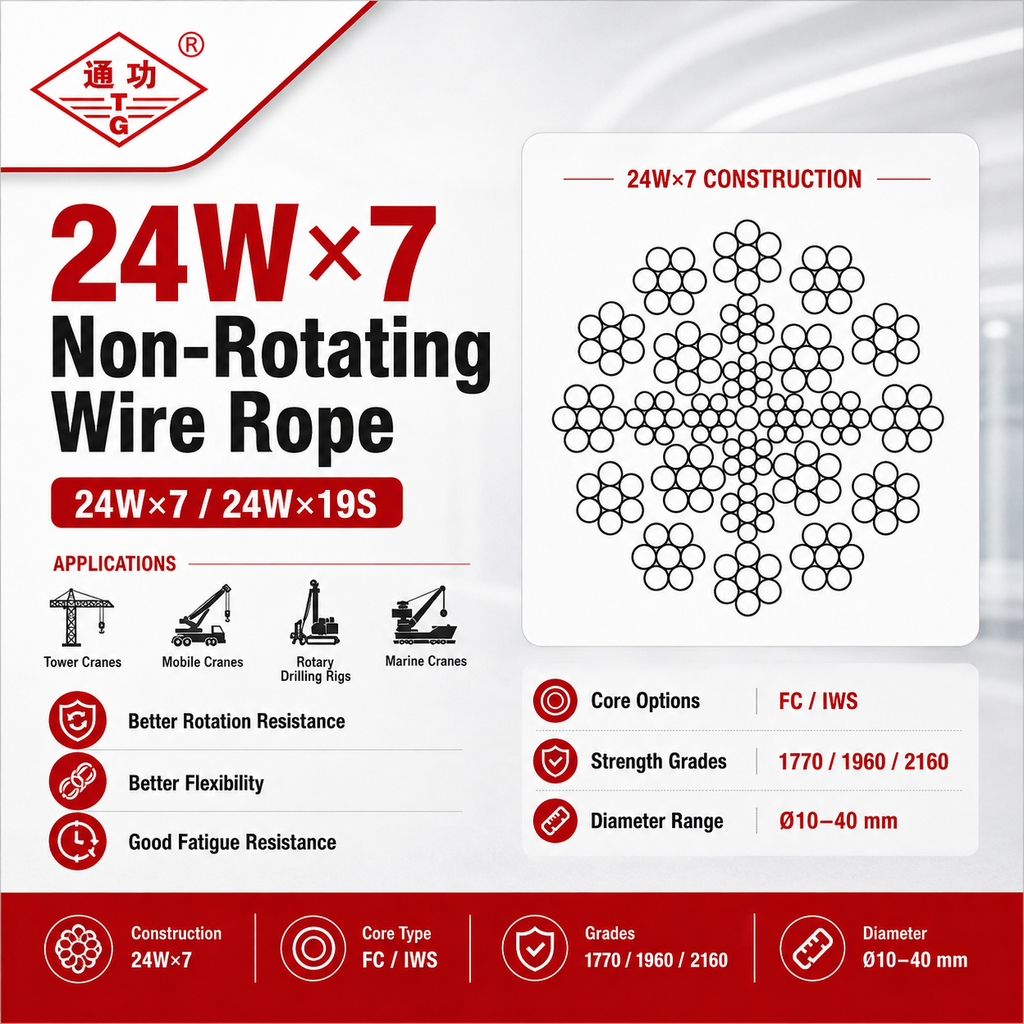

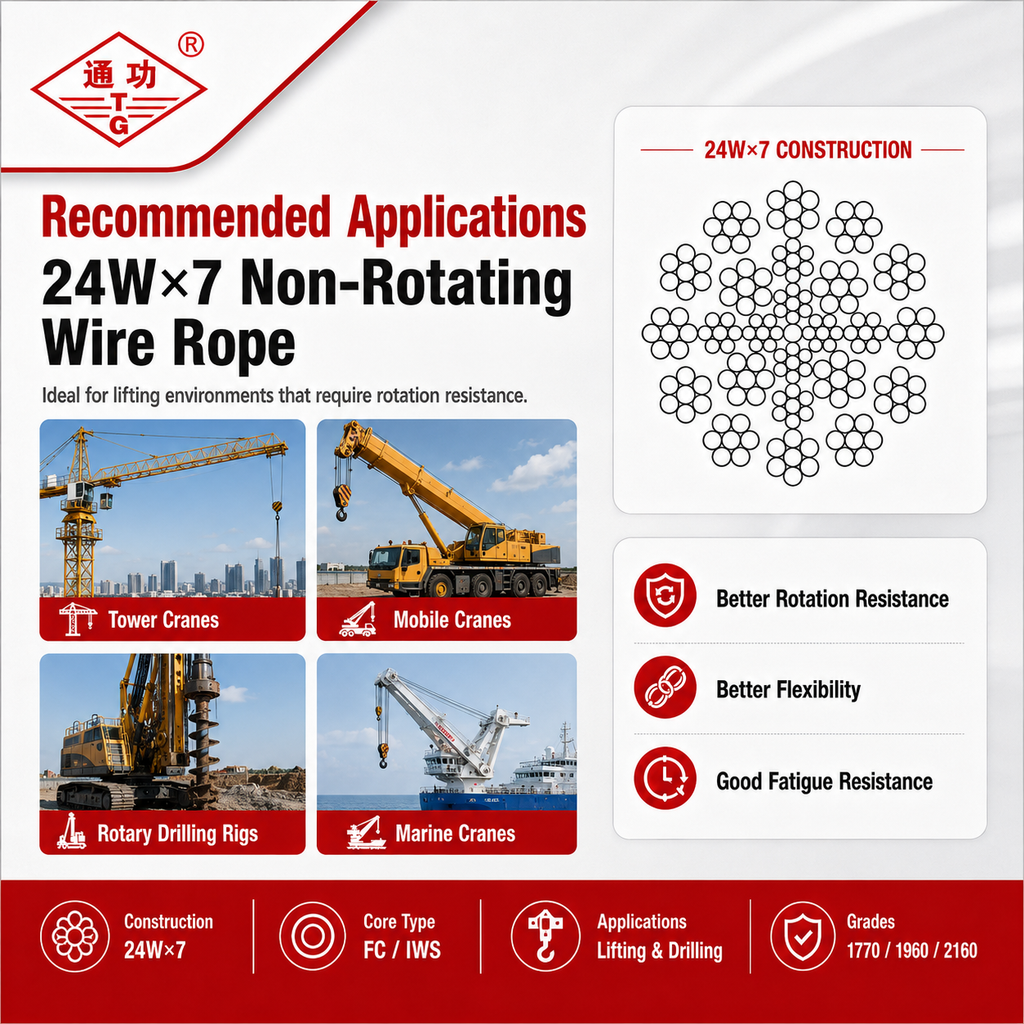

Applications requiring rotation resistance: tower cranes, mobile cranes, rotary drilling rigs, marine cranes.
Specifications

Diameter: 10–40 mm. Constructions: 24W×7, 24W×19S. Wire grade: 1770, 1960 or 2160 N/mm². Finish: bright or galvanized. Lay: right or left hand, regular or Lang's. Manufactured to EN 12385, ASTM A1023, YB/T 5359 and GB/T 8918. HS code 7312.10.
Packing & Delivery

Supplied on wooden or steel reels to 3,000 m, or cut to your required lengths. MOQ 1,000 m, negotiable. Packed for sea freight and shipped CIF. Lead time confirmed at quotation. Payment 30% deposit with balance before shipment.
Certification & Documentation

Manufactured under ISO 9001:2015, with ISO 14001, 45001 and 50001 management systems certified by CICC. CCS Works Approval held for marine rope, 10–80 mm. Every shipment ships with a mill certificate and test report. Additional documentation available on request.

Technical Specification

24W×7 weight and minimum breaking force by diameter
Diameter mm Weight kg/m MBF 1770 kN MBF 1960 kN MBF 2160 kN
100.43563.770.577.5
110.52677.185.494.1
120.62691.8101.6112.0
130.735107.7119.2131.4
140.853124.9138.3152.4
161.114163.1180.6199.1
181.409206.5228.6251.9
201.740254.9282.2311.0
222.105308342376
242.506367406448
262.941431477526
283.410500553610
303.915573635700
324.454652723796
345.029737816899
365.6388269141008
386.28192010191123
406.960102011291244

Scroll the table sideways to see all columns.

MBF = minimum breaking force at the stated wire tensile grade (N/mm²). Weights are nominal. Diameters outside 10–40 mm and non-standard grades are manufactured to order — request a quote.

About this construction

How does 24W×7 compare to 18×7?

More strands in more layers means better torque cancellation, so 24W×7 holds a load steadier on a single-part line. It's also more flexible. 18×7 is the simpler, lower-cost option where rotation demands are moderate.
What does the W mean?

Warrington strand construction — a wire arrangement that alternates thick and thin wires in the outer layer, giving a better balance of fatigue and abrasion resistance than uniform wires.
Where does 24W×7 sit in the non-rotating range?

Between 18×7 and the 35-strand constructions. It suits tower cranes, mobile cranes, rotary drilling rigs and marine cranes where rotation resistance matters but lifting heights don't demand a 35-strand rope.
Should I consider the compacted version?

24W×K7 gives higher breaking force at the same diameter plus better drum crush resistance. If you're running multi-layer drums or need more capacity without changing sheaves, it's worth comparing.
Yellow construction cranes with long boom arms reaching upward against a bright blue sky with scattered white clouds.

Applications

More layers, steadier loads

Twenty-four Warrington strands in opposing layers cancel torque more completely than an 18-strand rope, so loads sit steadier on a single fall. Flexible enough for tower and mobile crane reeving, with fatigue resistance to match.
See construction guide
A worker in a gray uniform and orange hard hat operates a large yellow and blue industrial machine inside a factory or workshop with concrete walls and metal equipment.

Manufacturing

Drawn, stranded and closed in-house

Every rope starts as Baosteel or Shagang wire rod and runs through our own servo-driven drawing and planetary stranding machines. German Fosser lubricant is applied at closing, and each rope is tensile tested against its declared breaking force before it ships.
Factory & quality

Ordering

Cut, reeled and shipped to spec

Reels run to 3,000 m, with custom lengths cut to order. Every shipment carries a mill certificate and test report, packed for sea freight and shipped CIF from the Yangtze Delta.

MOQ 1,000 m, negotiable.
Export & logistics
