18×7 Non-Rotating Wire Rope

18×7 Non-Rotating Wire Rope

18×7 Non-Rotating Wire Rope is a non-rotating rope construction, available in 18×7, 18×19S, 18×19W variants.

Applications requiring rotation resistance: tower cranes, mobile cranes, rotary drilling rigs, marine cranes.
Specifications

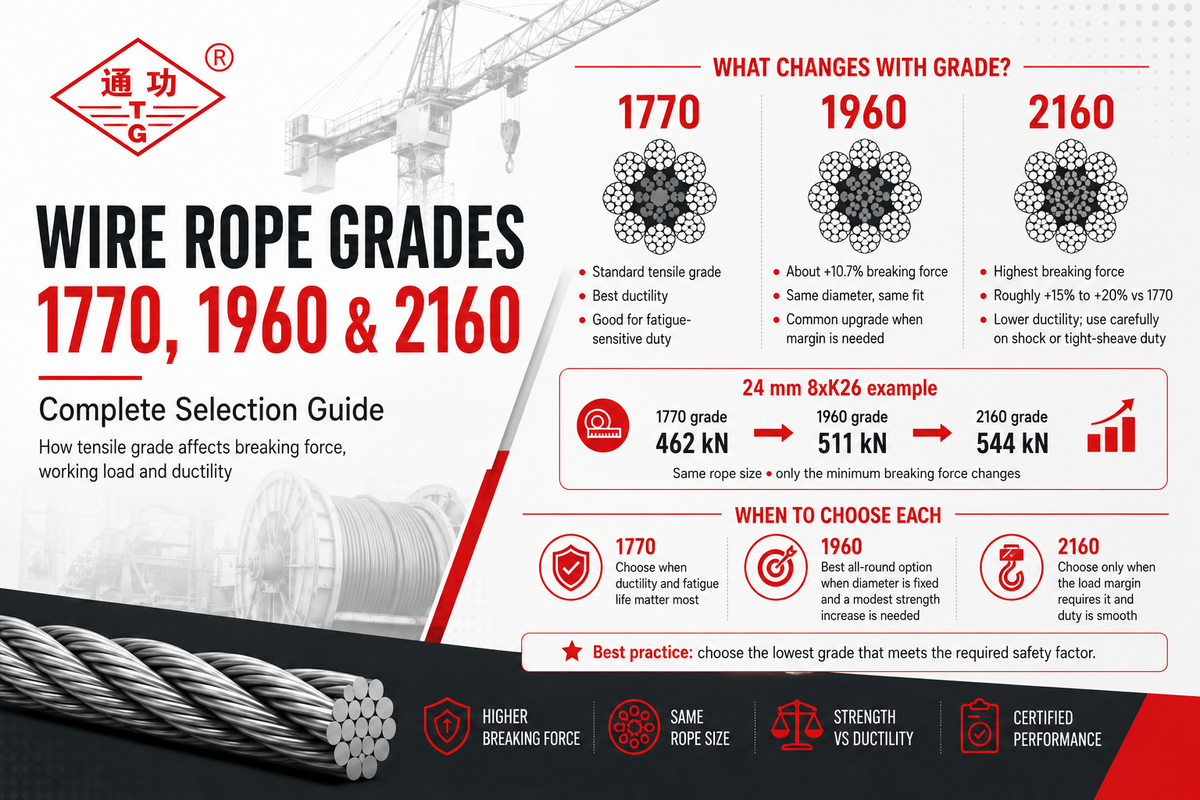

Diameter: 6–80 mm (see table for this construction's range). Core: fiber (FC) or independent steel (IWRC), plastic-injected on request. Wire grade: 1770, 1960 or 2160 N/mm². Finish: bright or galvanized. Lay: right or left hand, regular or Lang's. Manufactured to EN 12385, ASTM A1023, YB/T 5359 and GB/T 8918. HS code 7312.10.
Packing & Delivery

Supplied on wooden or steel reels to 3,000 m, or cut to your required lengths. MOQ 1,000 m, negotiable. Packed for sea freight and shipped CIF. Lead time confirmed at quotation. Payment 30% deposit with balance before shipment.
Certification & Documentation

Manufactured under ISO 9001:2015, with ISO 14001, 45001 and 50001 management systems certified by CICC. CCS Works Approval held for marine rope, 10–80 mm. Every shipment ships with a mill certificate and test report. Additional documentation available on request.

Technical Specification

18×7 weight and minimum breaking force by diameter
Diameter mm Weight FC kg/m Weight IWRC kg/m MBF 1770 FC kN MBF 1770 IWRC kN MBF 1960 FC kN MBF 1960 IWRC kN MBF 2160 FC kN MBF 2160 IWRC kN
140.7820.821108114119126131139
161.0211.073140149156165171181
181.2931.358178188197208217230
191.4401.513198210219232242256
201.5961.676219232243257268283
221.9312.028266281294311324343
242.2982.413316334350370386408
262.6972.832371392411435453479
283.1283.285430455476504525555
303.5103.870494522547579603638
324.0864.291562594622658686725
344.5084.971634671702743774819
365.1715.430711752787833868918
385.7626.0507928388779289671020
406.3846.704878929972103010701130
427.0387.39196810201070113011801250

Scroll the table sideways to see all columns.

FC = fiber core · IWRC = independent steel wire rope core · MBF = minimum breaking force at the stated wire tensile grade (N/mm²). Weights are nominal. Diameters outside 14–42 mm and non-standard grades are manufactured to order — request a quote.

About this construction

Is 18×7 the same as 19×7?

They're closely related rotation-resistant constructions. 18×7 has 18 strands laid over an independent core; 19×7 counts the core strand in the designation. Check which your machine's manual specifies, and we'll confirm the equivalent.
Can I use 18×7 on a multi-layer drum?

Rotation-resistant rope is more sensitive to crushing than compacted constructions. For heavy multi-layer spooling, a compacted 19×K7 usually gives longer service life — tell us your drum arrangement and we'll advise.
When should I choose 18×7 over 19×K7?

18×7 gives good rotation resistance at lower cost. 19×K7 gives higher breaking force at the same diameter plus better crush and abrasion resistance, which pays back on demanding duty cycles.
Do both ends need to be fixed?

Rotation-resistant rope should never be allowed to spin freely under load. Follow the manufacturer's termination guidance, and use a swivel only where the rope is rated for it.

Applications

Built for rotation-resistant lifts

18×7 uses two opposing strand layers so torque from the outer layer cancels the one beneath it. That keeps a load from spinning on a single-part line — the reason it's specified for tower cranes, mobile cranes, rotary drilling rigs and marine cranes.
See construction guide
A worker in a gray uniform and orange hard hat operates a large yellow and blue industrial machine inside a factory or workshop with concrete walls and metal equipment.

Manufacturing

Drawn, stranded and closed in-house

Every rope starts as Baosteel or Shagang wire rod and runs through our own servo-driven drawing and planetary stranding machines. German Fosser lubricant is applied at closing, and each rope is tensile tested against its declared breaking force before it ships.
Factory & quality

Ordering

Cut, reeled and shipped to spec

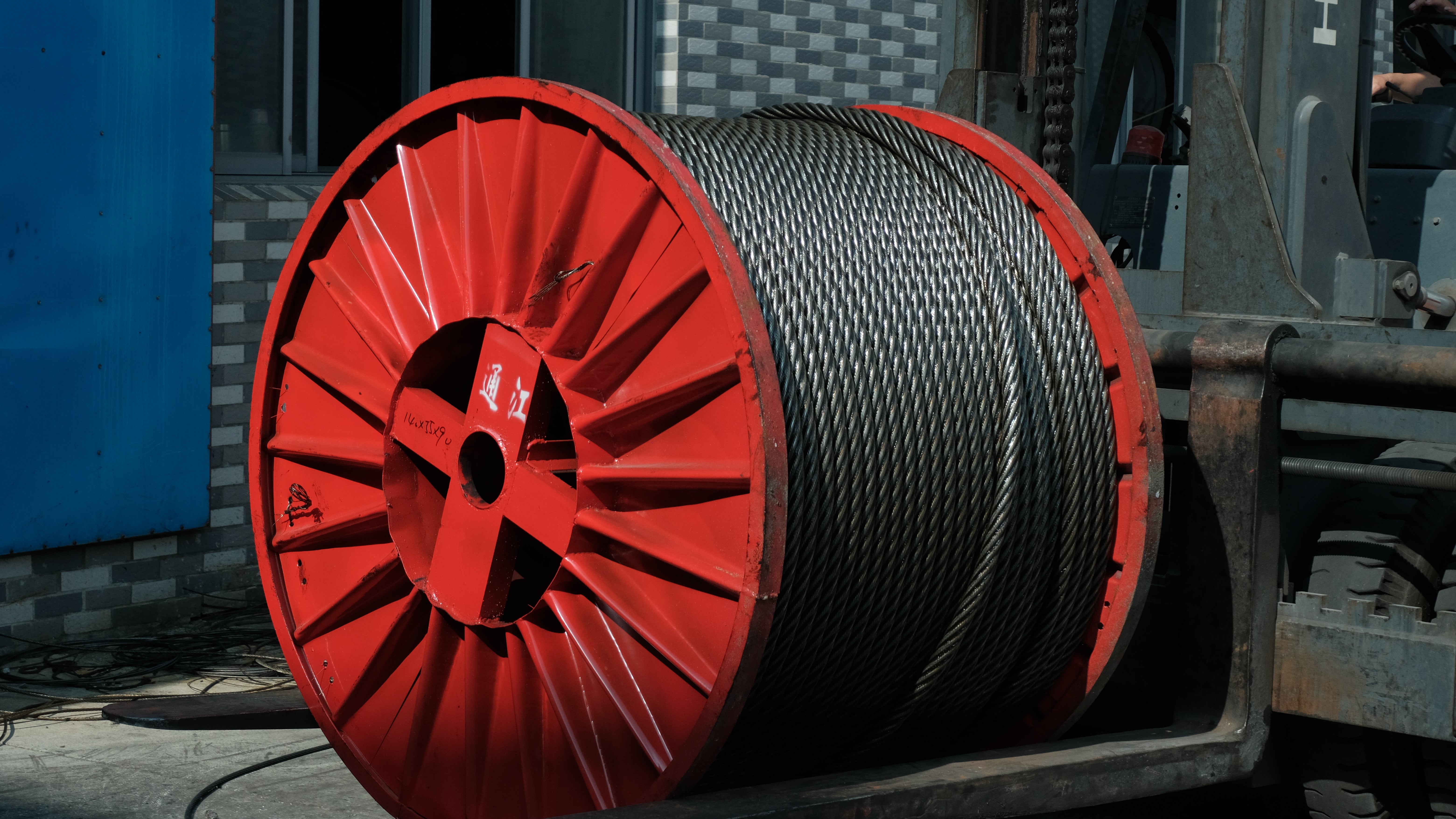

Reels run to 3,000 m, with custom lengths cut to order. Every shipment carries a mill certificate and test report, packed for sea freight and shipped CIF from the Yangtze Delta.

MOQ 1,000 m, negotiable.
