19×K7 Non-Rotating Compacted Wire Rope

19×K7 Non-Rotating Compacted Wire Rope

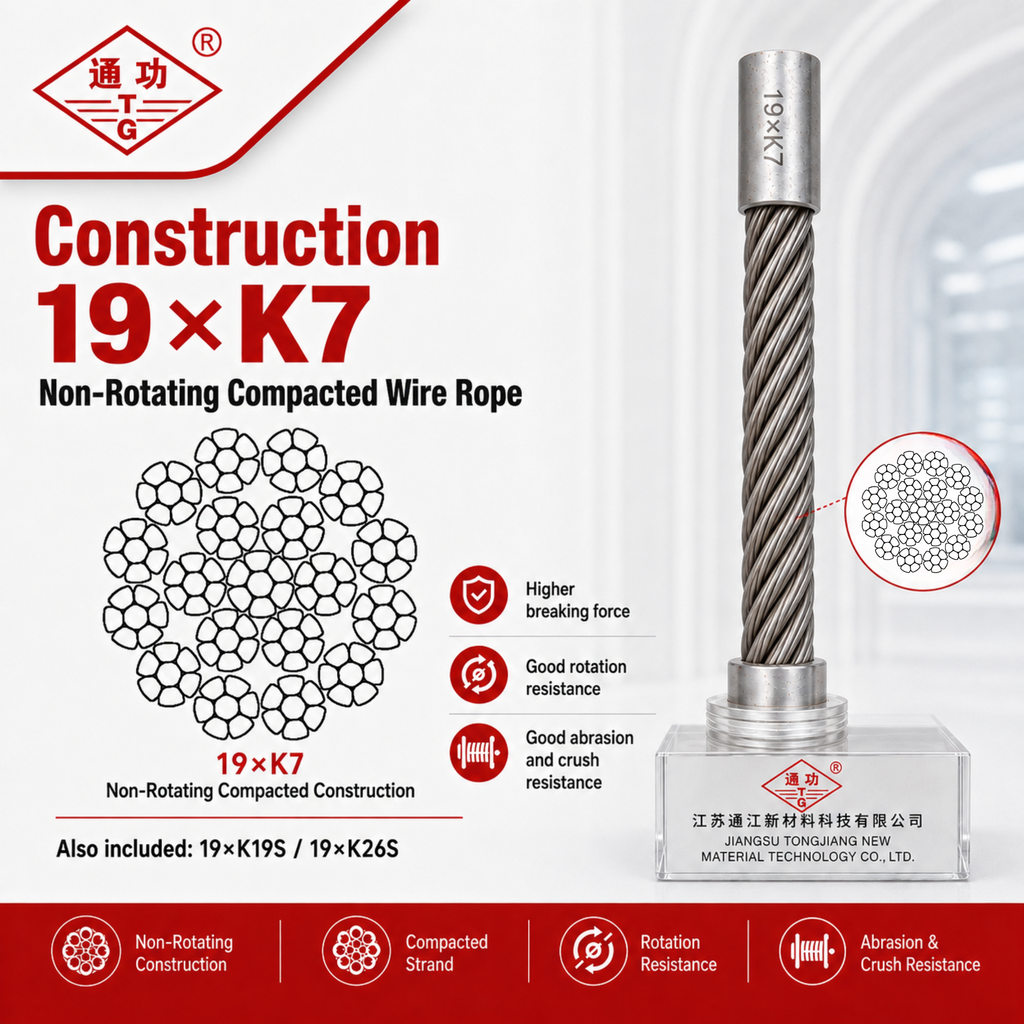

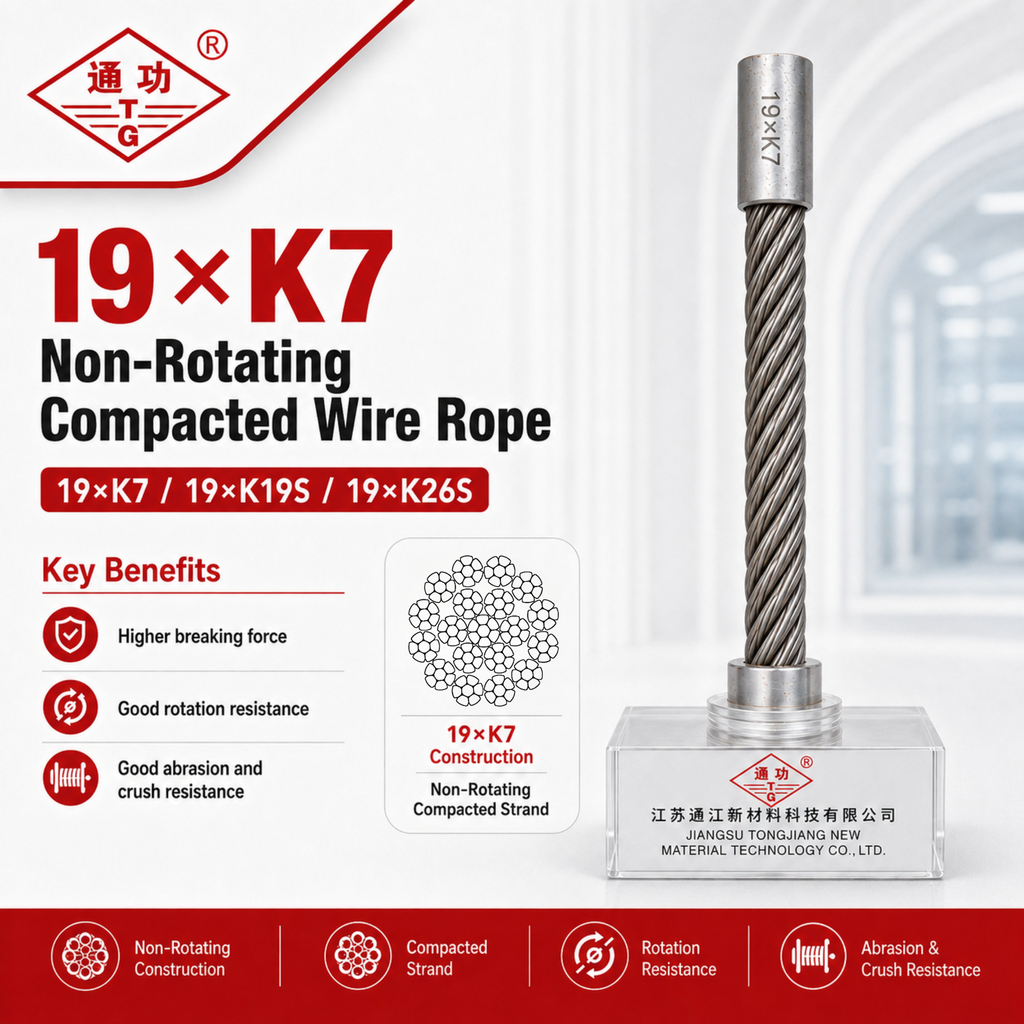

19×K7 Non-Rotating Compacted Wire Rope is a non-rotating rope construction, available in 19×K7, 19×K19S, 19×K26S variants.

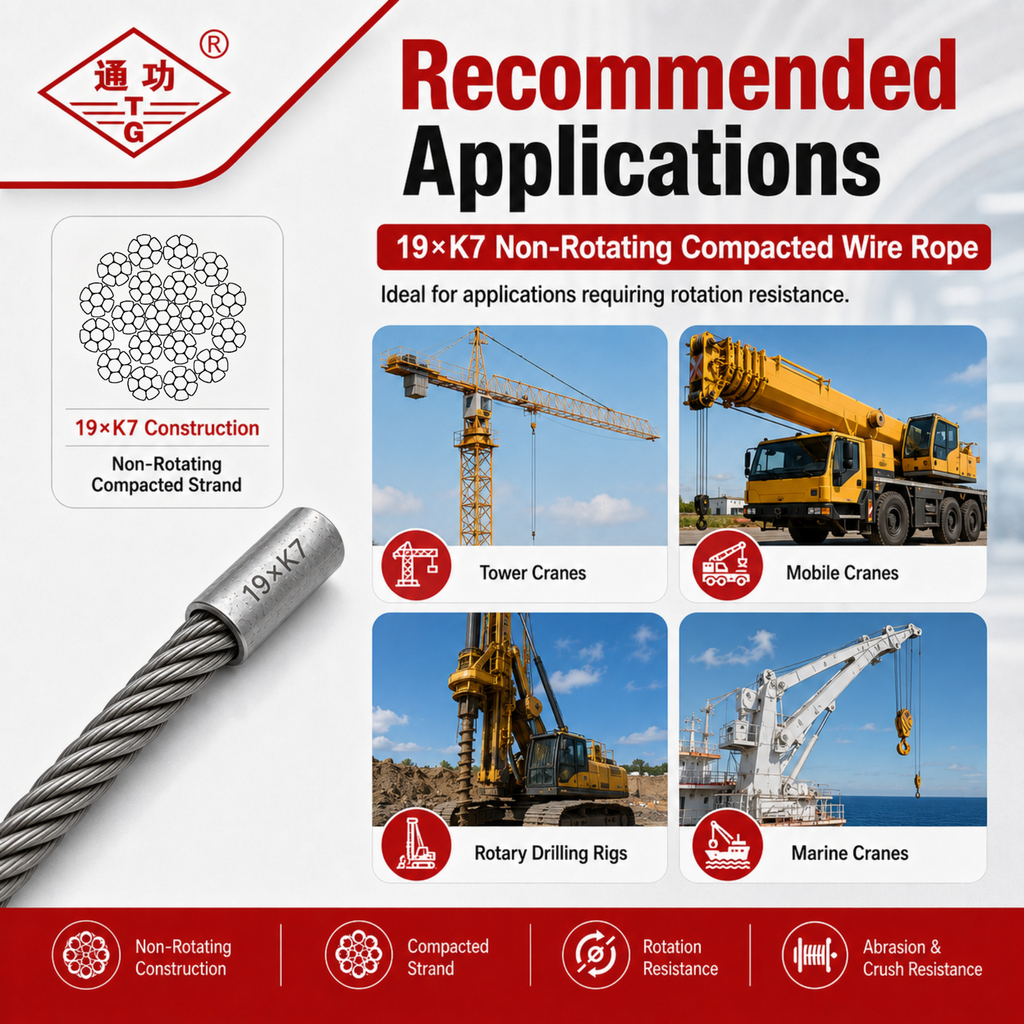

Applications requiring rotation resistance: tower cranes, mobile cranes, rotary drilling rigs, marine cranes.

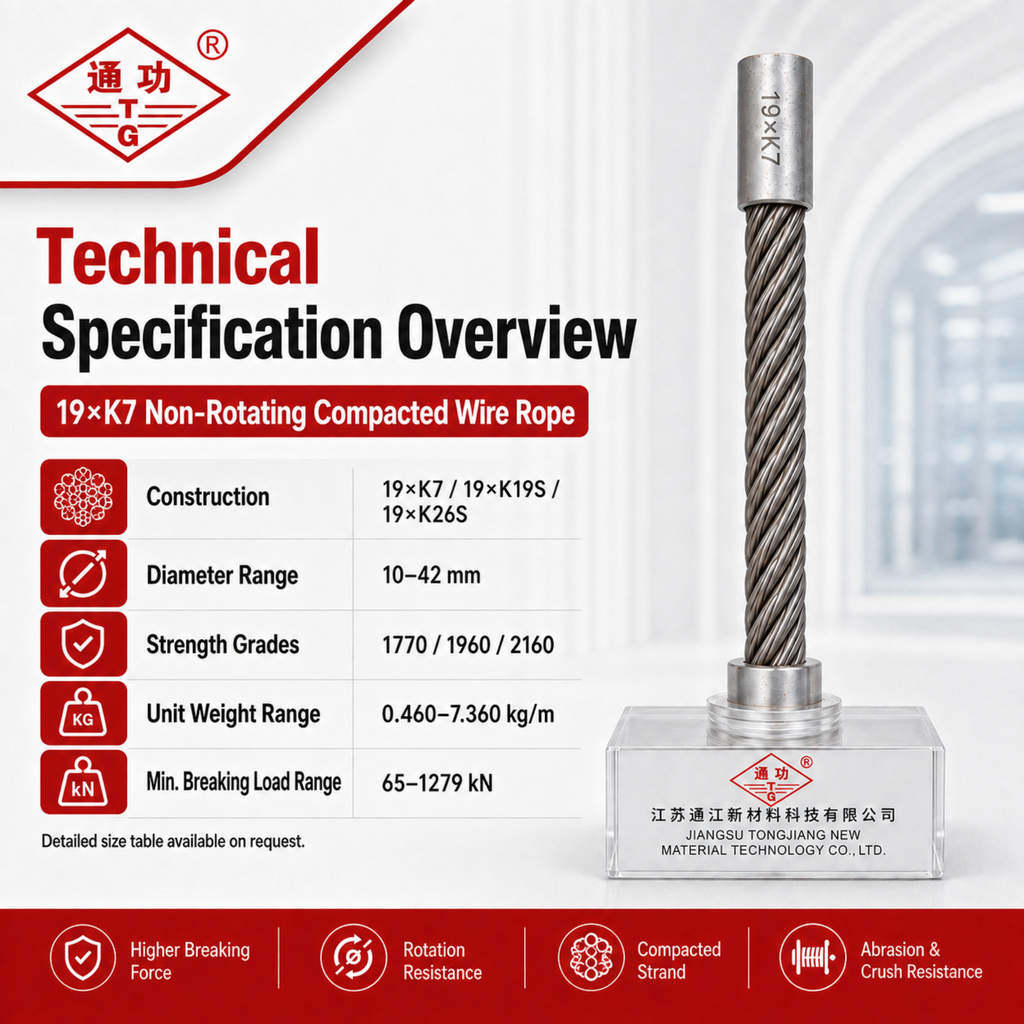

Specifications

Diameter: 10–42 mm. Constructions: 19×K7, 19×K19S, 19×K26S. Core: independent steel (IWRC). Wire grade: 1770, 1960 or 2160 N/mm². Finish: bright or galvanized. Lay: right or left hand, regular or Lang's. Manufactured to EN 12385, ASTM A1023, YB/T 5359 and GB/T 8918. HS code 7312.10.
Packing & Delivery

Supplied on wooden or steel reels to 3,000 m, or cut to your required lengths. MOQ 1,000 m, negotiable. Packed for sea freight and shipped CIF. Lead time confirmed at quotation. Payment 30% deposit with balance before shipment.
Certification & Documentation

Manufactured under ISO 9001:2015, with ISO 14001, 45001 and 50001 management systems certified by CICC. CCS Works Approval held for marine rope, 10–80 mm. Every shipment ships with a mill certificate and test report. Additional documentation available on request.

Technical Specification

19×K7 weight and minimum breaking force by diameter
Diameter mm Weight kg/m MBF 1770 kN MBF 1960 kN MBF 2160 kN
100.460657380
120.66294104115
140.902128142157
161.178168186205
181.490212235259
191.661236262289
201.840262290320
222.226317351387
242.650377418460
263.110443490540
283.606513569627
304.140589653719
324.710671743818
345.318757838924
365.9628499401036
406.64294610471154
427.360104811601279

Scroll the table sideways to see all columns.

MBF = minimum breaking force at the stated wire tensile grade (N/mm²). Weights are nominal. Diameters outside 10–42 mm and non-standard grades are manufactured to order — request a quote.

About this construction

How does 19×K7 compare to 18×7?

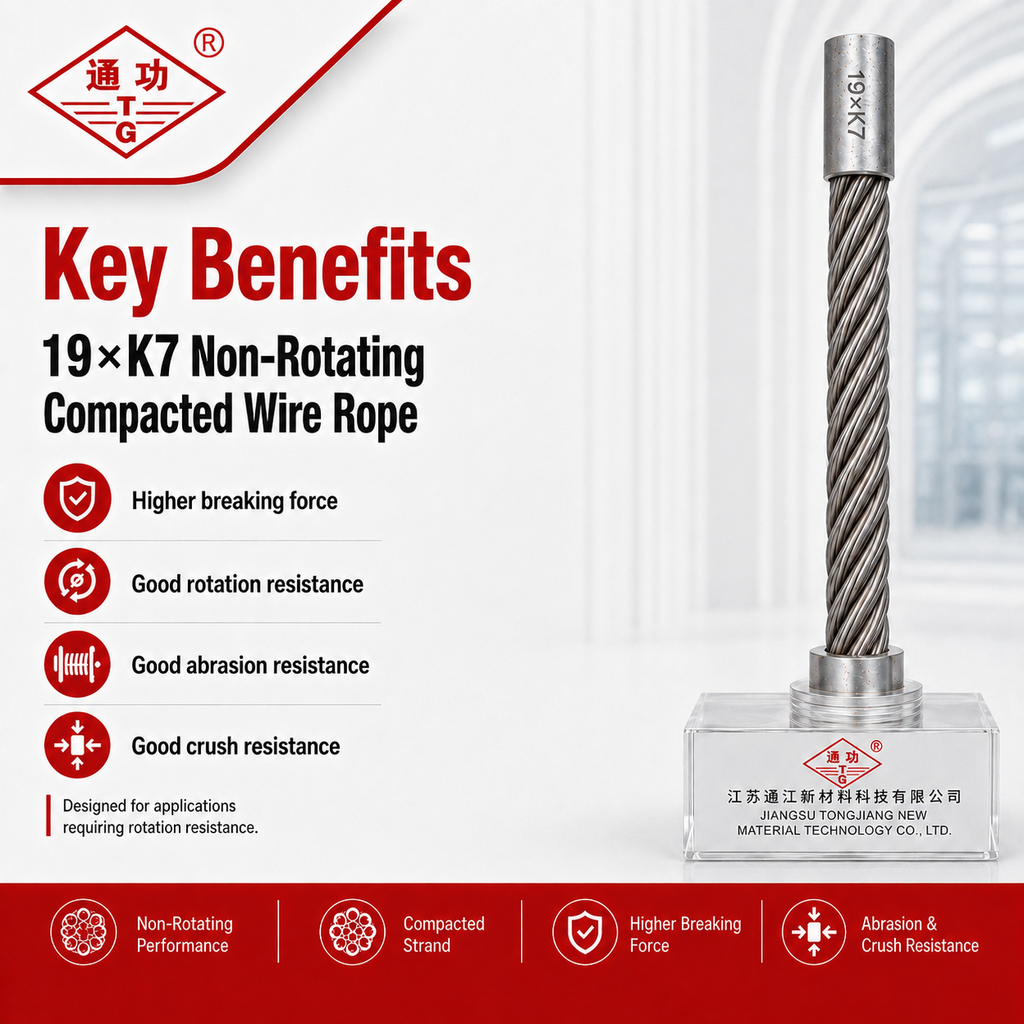

Same job, more capacity. Compacted strands raise the breaking force at every diameter and improve resistance to drum crushing. 18×7 is the lower-cost option where you don't need either.
Is it as rotation-resistant as 35W×K7?

No. Nineteen strands cancel less torque than thirty-five. For long single-part lifts at height, step up to a 35-strand construction. 19×K7 suits moderate lifting heights where you also want strength and abrasion resistance.
Can I use it on a multi-layer drum?

Better than most rotation-resistant ropes. The compacted outer surface spreads pressure instead of concentrating it on the wire crowns, which is exactly what multi-layer spooling punishes.
Which constructions are included?

19×K7, 19×K19S and 19×K26S. They share diameter and breaking force but differ in wires per strand — tell us your sheave sizes and duty cycle and we'll recommend one.

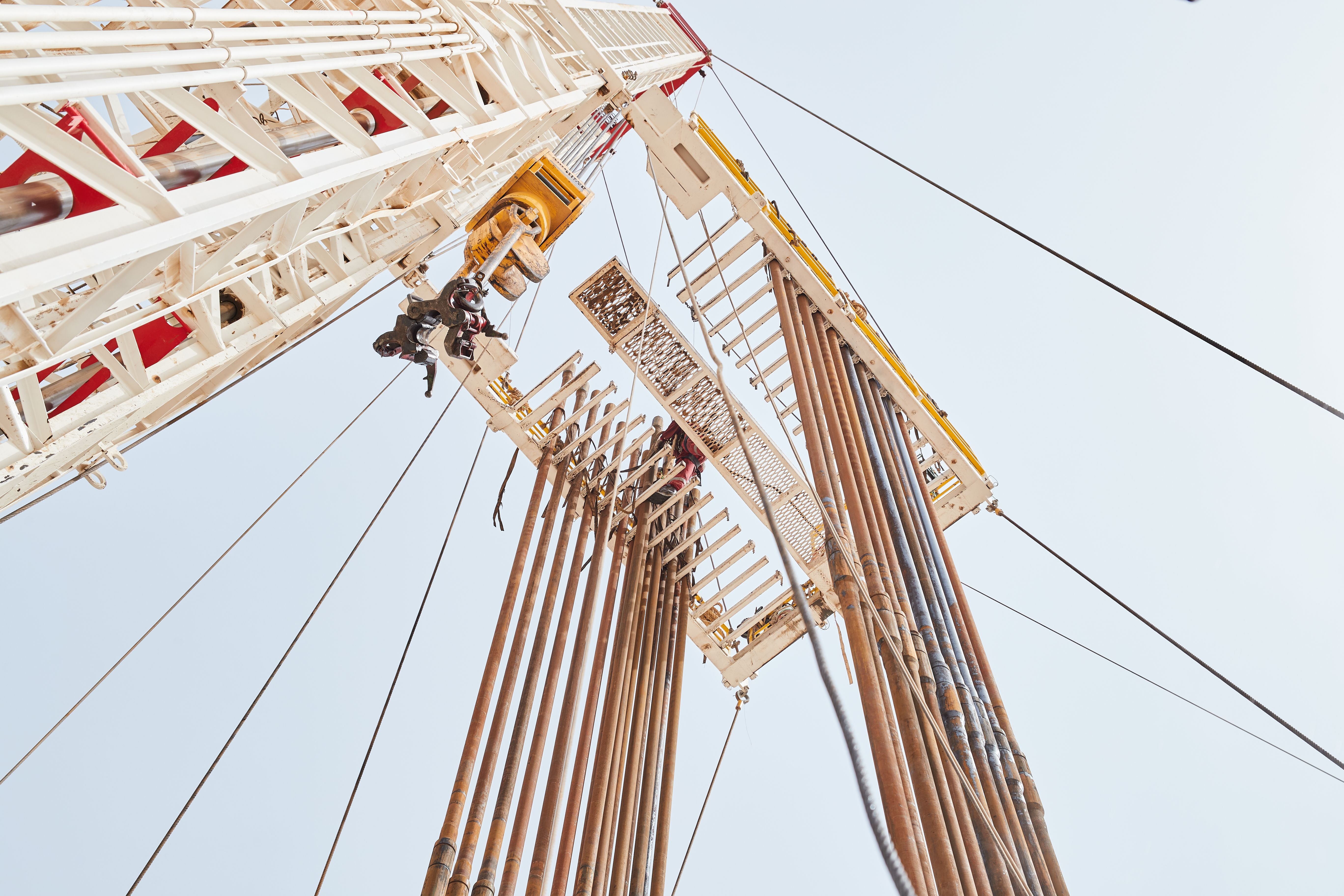

An oil rig drilling platform structure photographed from a low angle against a pale sky, with workers visible on the rig and multiple steel pipes and cables extending upward.

Selecting 19-strand compacted rope

Rotation resistance with more steel

Compacting the strands puts more metal into the same diameter, so 19×K7 carries noticeably more load than 18×7 while keeping the opposing-layer construction that stops a load spinning. At 30 mm, 1960 grade, that's 653 kN against 547 kN for fiber-core 18×7.
See construction guide
A worker in a gray uniform and orange hard hat operates a large yellow and blue industrial machine inside a factory or workshop with concrete walls and metal equipment.

Manufacturing

Drawn, stranded and closed in-house

Every rope starts as Baosteel or Shagang wire rod and runs through our own servo-driven drawing and planetary stranding machines. German Fosser lubricant is applied at closing, and each rope is tensile tested against its declared breaking force before it ships.
Factory & quality

Ordering

Cut, reeled and shipped to spec

Reels run to 3,000 m, with custom lengths cut to order. Every shipment carries a mill certificate and test report, packed for sea freight and shipped CIF from the Yangtze Delta.

MOQ 1,000 m, negotiable.
Export & logistics
