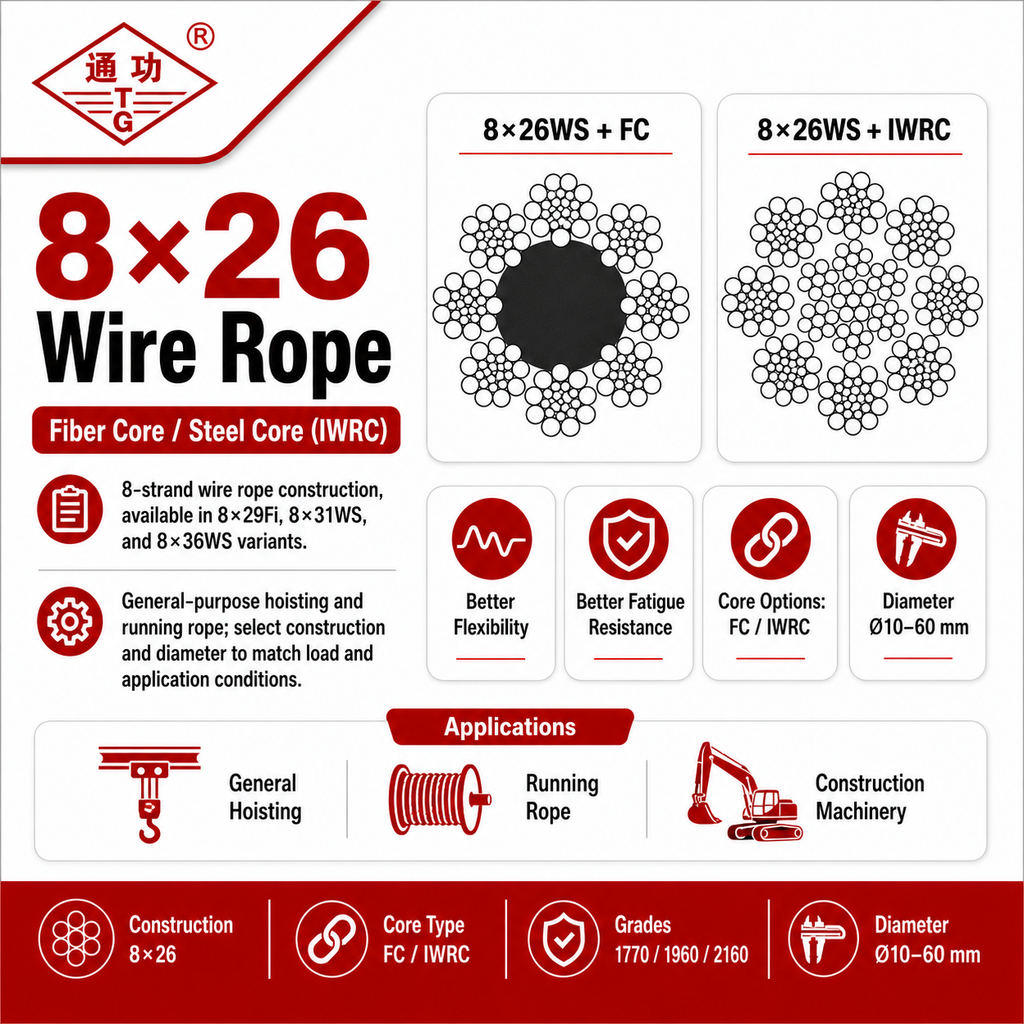

8×26 Wire Rope – Fiber Core / Steel Core (IWRC) is a 8-strand wire rope construction, available in 8×29Fi, 8×31WS, 8×36WS variants.

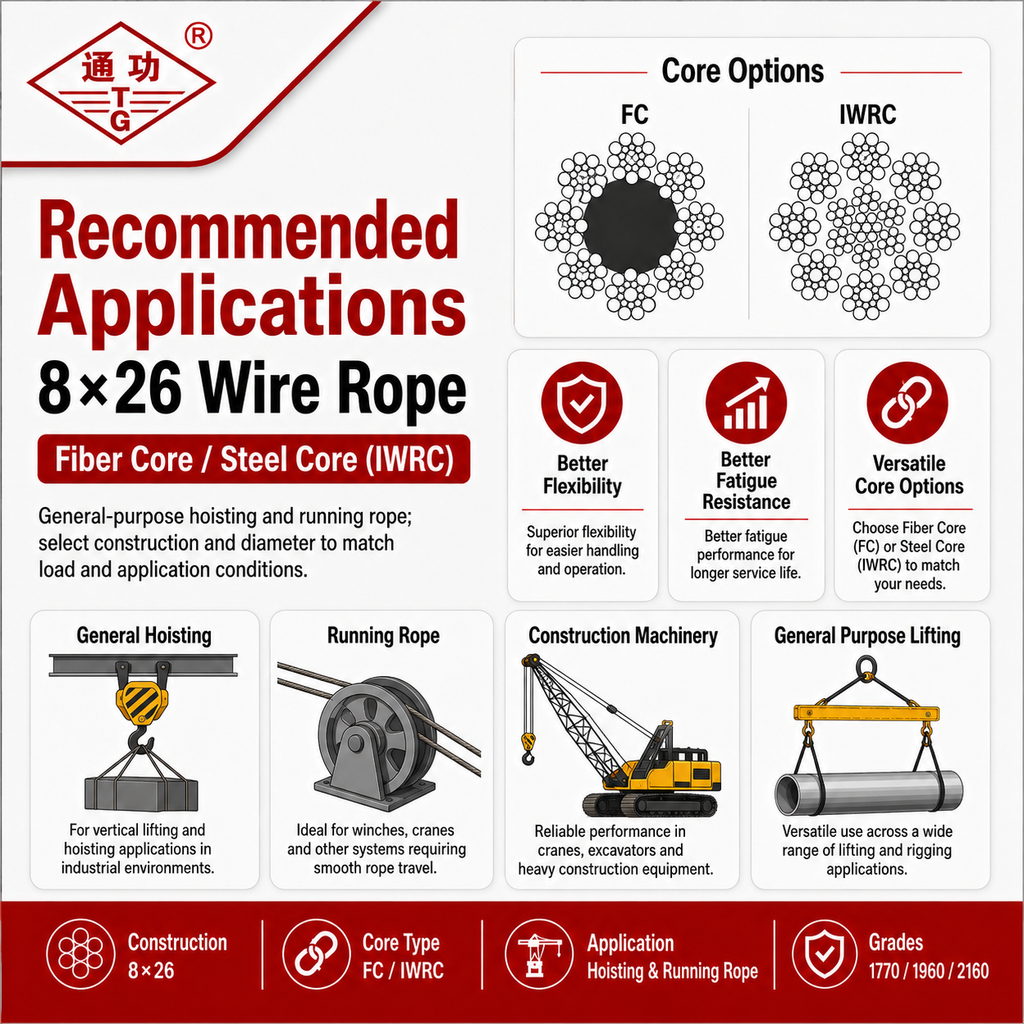

General-purpose hoisting and running rope; select construction and diameter to match load and application conditions.
Specifications

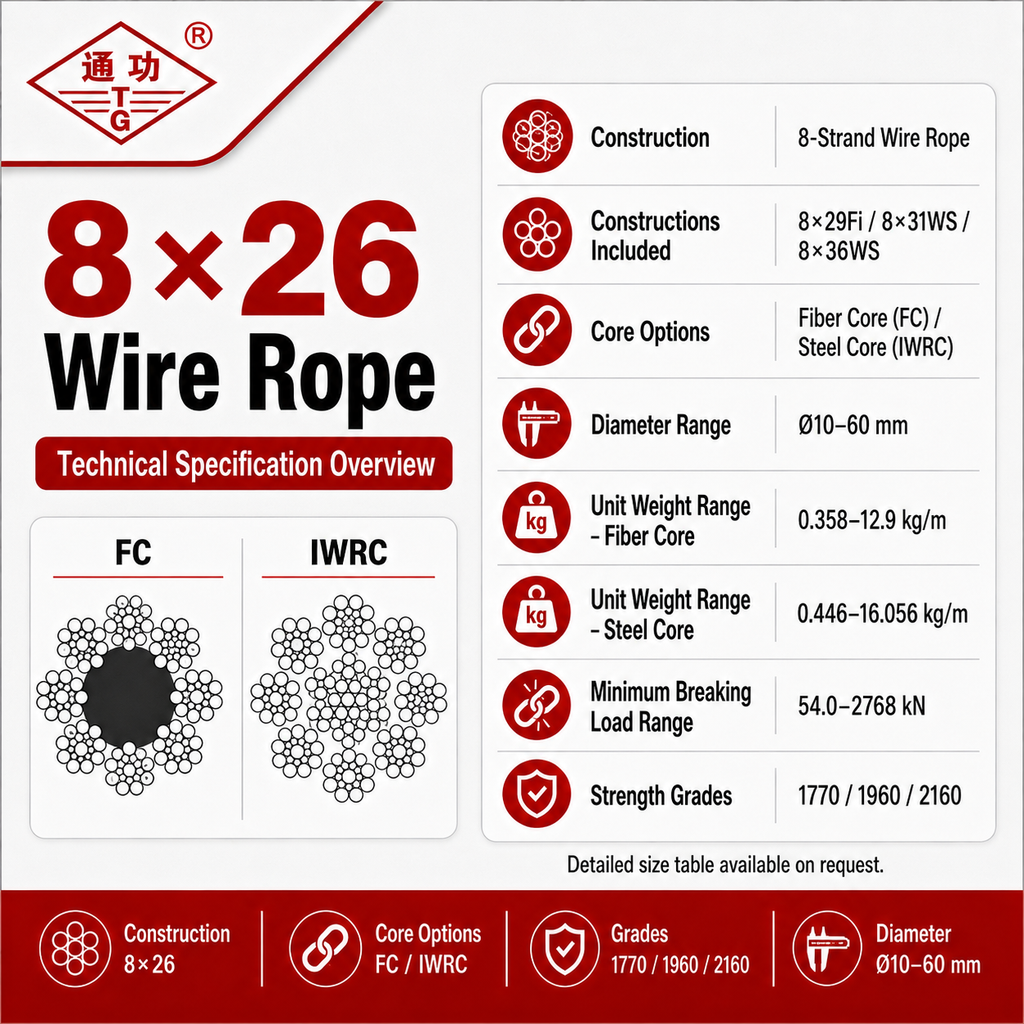

Diameter: 10–60 mm. Constructions: 8×29Fi, 8×31WS, 8×36WS. Core: fiber (FC) or independent steel (IWRC). Wire grade: 1770, 1960 or 2160 N/mm². Finish: bright or galvanized. Lay: right or left hand, regular or Lang's. Manufactured to EN 12385, ASTM A1023, YB/T 5359 and GB/T 8918. HS code 7312.10.
Packing & Delivery

Supplied on wooden or steel reels to 3,000 m, or cut to your required lengths. MOQ 1,000 m, negotiable. Packed for sea freight and shipped CIF. Lead time confirmed at quotation. Payment 30% deposit with balance before shipment.
Certification & Documentation

Manufactured under ISO 9001:2015, with ISO 14001, 45001 and 50001 management systems certified by CICC. CCS Works Approval held for marine rope, 10–80 mm. Every shipment ships with a mill certificate and test report. Additional documentation available on request.

Technical Specification

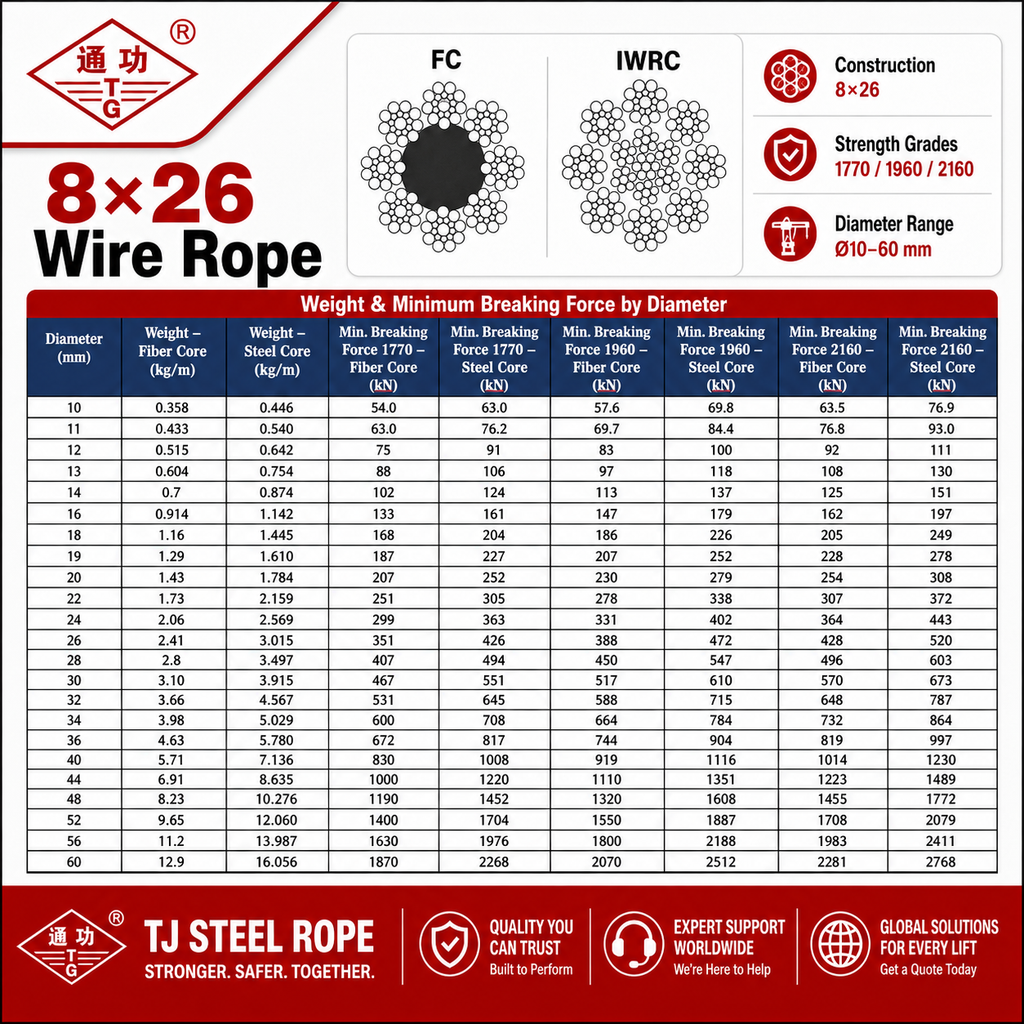

8×26 weight and minimum breaking force by diameter
Diameter mm Weight FC kg/m Weight IWRC kg/m MBF 1770 FC kN MBF 1770 IWRC kN MBF 1960 FC kN MBF 1960 IWRC kN MBF 2160 FC kN MBF 2160 IWRC kN
100.3580.44654.063.057.669.863.576.9
110.4330.54063.076.269.784.476.893.0
120.5150.64275918310092111
130.6040.7548810697118108130
140.7000.874102124113137125151
160.9141.142133161147179162197
181.1601.445168204186226205249
191.2901.610187227207252228278
201.4301.784207252230279254308
221.7302.159251305278338307372
242.0602.569299363331402364443
262.4103.015351426388472428520
282.8003.497407494450547496603
303.1003.915467551517610570673
323.6604.567531645588715648787
343.9805.029600708664784732864
364.6305.780672817744904819997
405.7107.1368301008919111610141230
446.9108.635100012201110135112231489
488.23010.276119014521320160814551772
529.65012.060140017041550188717082079
5611.20013.987163019761800218819832411
6012.90016.056187022682070251222812768

Scroll the table sideways to see all columns.

FC = fiber core · IWRC = independent steel wire rope core · MBF = minimum breaking force at the stated wire tensile grade (N/mm²). Weights are nominal. Diameters outside 10–60 mm and non-standard grades are manufactured to order — request a quote.

About this construction

How does 8×26 differ from 8×19?

More wires per strand. 8×26 is finer and more flexible with better fatigue life; 8×19 has thicker outer wires and resists abrasion better. Breaking force with a steel core is identical between the two.
This is the most flexible construction you offer — when do I need that?

Where the rope bends hard and often: small sheave diameters, multiple falls, high cycle counts, tight reeving on compact machines. Flexibility buys fatigue life in exactly those conditions.
What's the trade-off?

Finer outer wires wear through faster against drums, sheaves and edges. If your ropes are being retired for surface wear rather than broken wires, step back to 8×19 or a 6-strand construction.

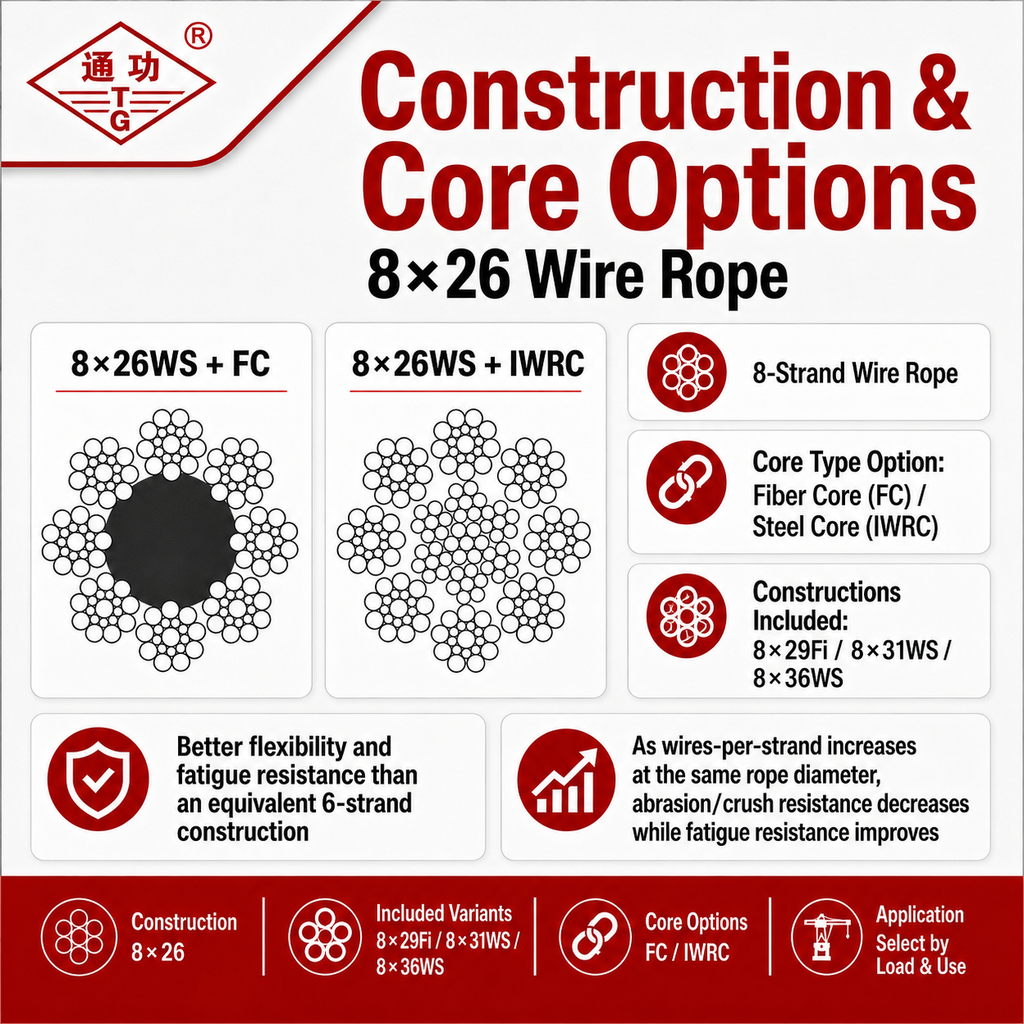

Which constructions are included?

8×29Fi, 8×31WS and 8×36WS. All share diameter and breaking force but differ in wire arrangement — tell us your sheave sizes and duty cycle and we'll recommend one.

Applications

The most flexible rope we make

Eight strands, each built from many fine wires, gives a rope that bends more easily than anything else in the range. It's the answer where machines have small sheaves and ropes reeve through multiple falls — flexibility bought at the cost of surface hardness.
See construction guide
A worker in a gray uniform and orange hard hat operates a large yellow and blue industrial machine inside a factory or workshop with concrete walls and metal equipment.

Manufacturing

Drawn, stranded and closed in-house

Every rope starts as Baosteel or Shagang wire rod and runs through our own servo-driven drawing and planetary stranding machines. German Fosser lubricant is applied at closing, and each rope is tensile tested against its declared breaking force before it ships.
Factory & quality

Ordering

Cut, reeled and shipped to spec

Reels run to 3,000 m, with custom lengths cut to order. Every shipment carries a mill certificate and test report, packed for sea freight and shipped CIF from the Yangtze Delta.

MOQ 1,000 m, negotiable.
