35W×7 Non-Rotating Wire Rope

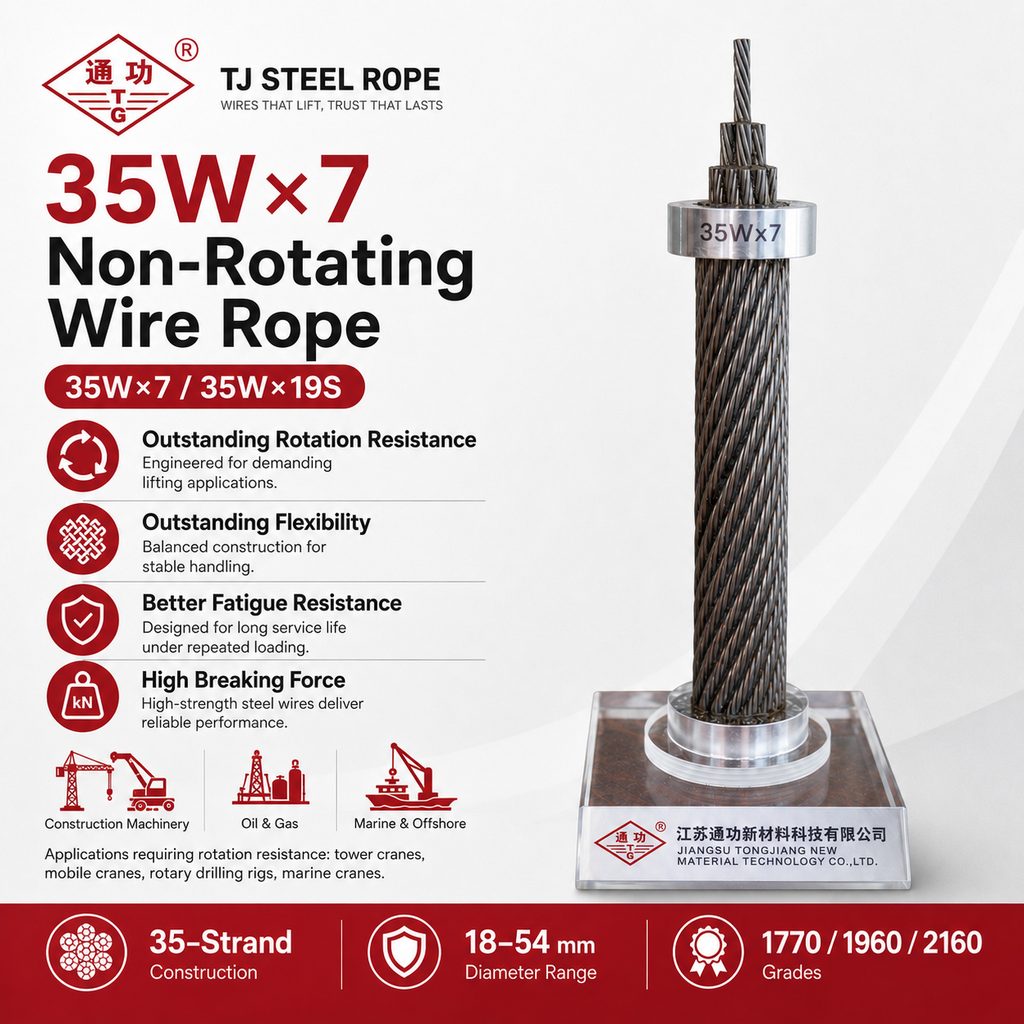

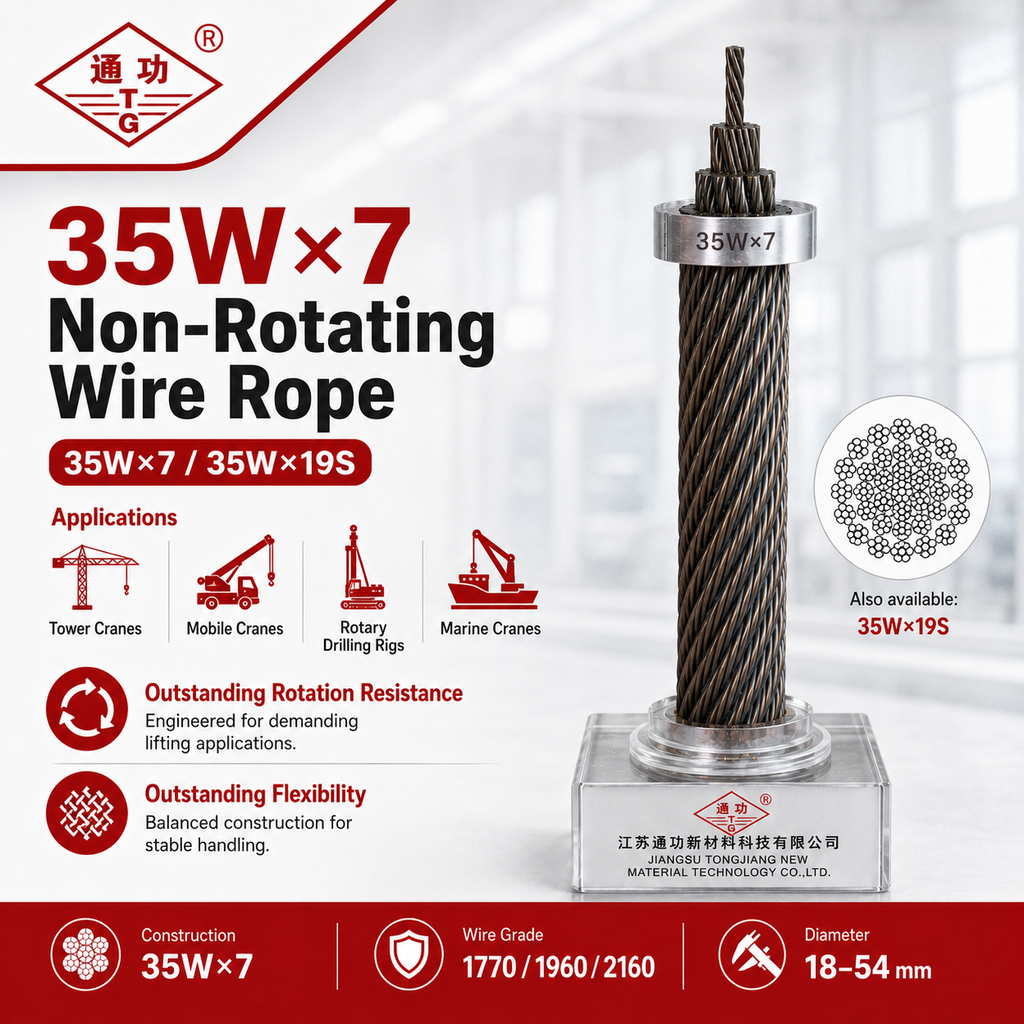

35W×7 Non-Rotating Wire Rope is a non-rotating rope construction, available in 35W×7, 35W×19S variants.

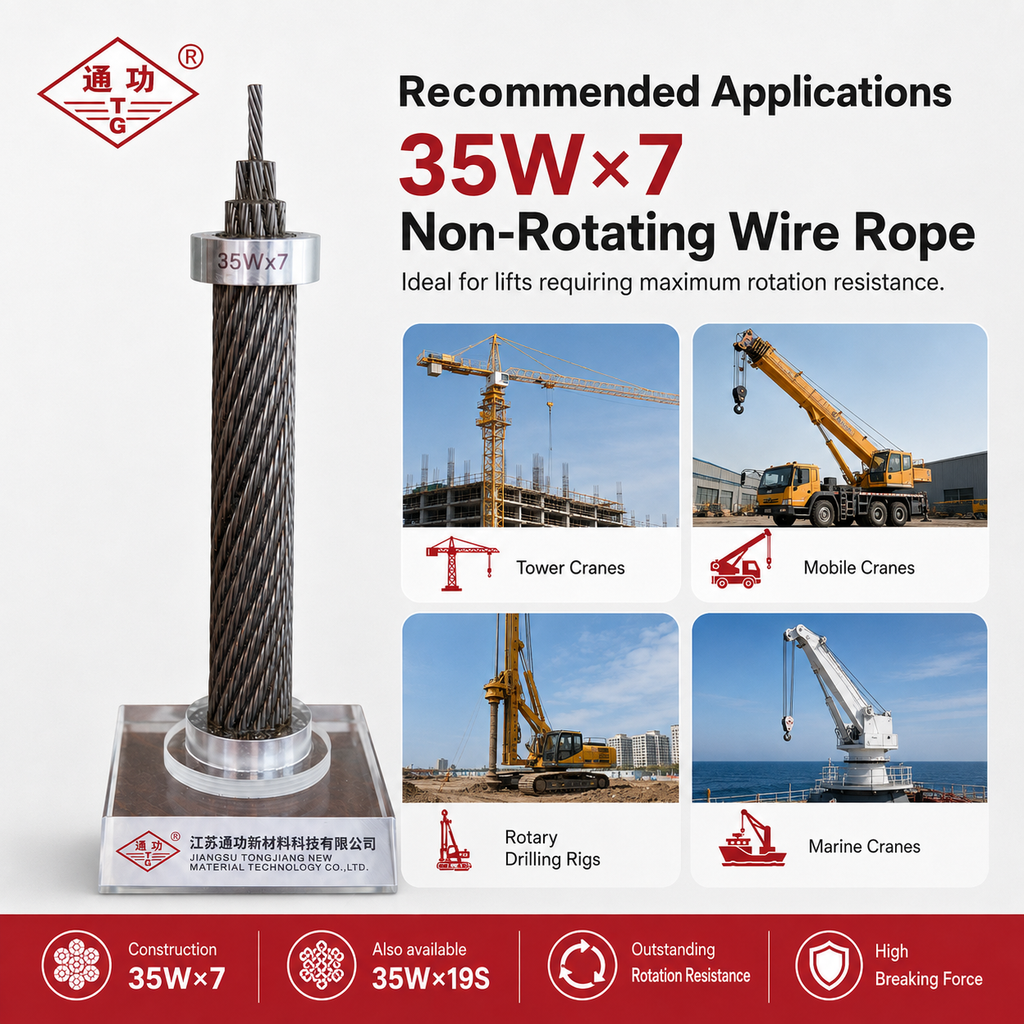

Applications requiring rotation resistance: tower cranes, mobile cranes, rotary drilling rigs, marine cranes.
Pickup currently not available
Specifications
Diameter: 10–60 mm. Constructions: 6×19S, 6×19W, 6×25Fi, 6×26WS. Core: fiber (FC) or independent steel (IWRC), plastic-injected on request. Wire grade: 1770, 1960 or 2160 N/mm². Finish: bright or galvanized. Lay: right or left hand, regular or Lang's. Manufactured to EN 12385, ASTM A1023, YB/T 5359 and GB/T 8918. HS code 7312.10.
Packing & Delivery
Supplied on wooden or steel reels to 3,000 m, or cut to your required lengths. MOQ 1,000 m, negotiable. Packed for sea freight and shipped CIF. Lead time confirmed at quotation. Payment 30% deposit with balance before shipment.
Certification & Documentation
Manufactured under ISO 9001:2015, with ISO 14001, 45001 and 50001 management systems certified by CICC. CCS Works Approval held for marine rope, 10–80 mm. Every shipment ships with a mill certificate and test report. Additional documentation available on request.

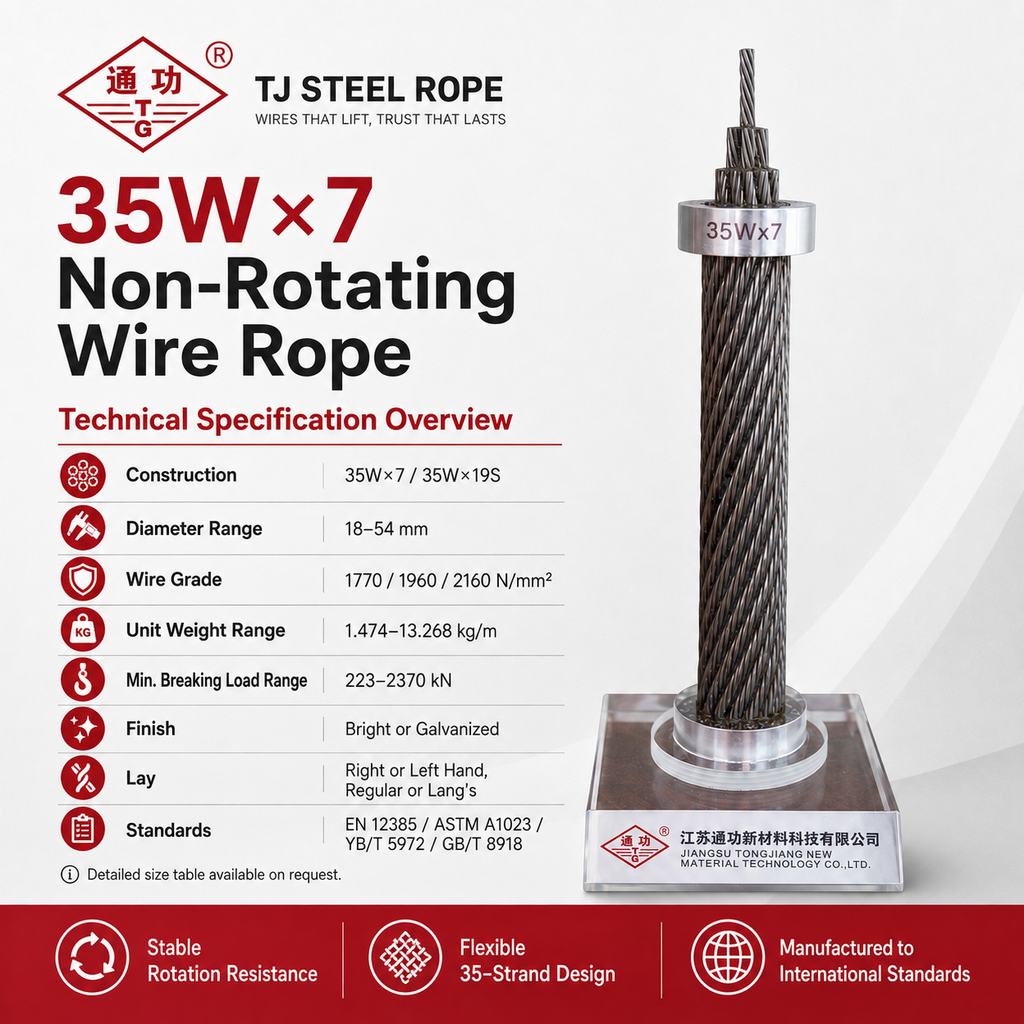

Technical Specification
| Diameter mm | Weight kg/m | MBF 1770 kN | MBF 1960 kN | MBF 2160 kN |
|---|---|---|---|---|
| 18 | 1.474 | 223 | 241 | 271 |
| 19 | 1.643 | 251 | 275 | 308 |
| 20 | 1.820 | 278 | 299 | 336 |
| 22 | 2.202 | 337 | 368 | 413 |
| 24 | 2.621 | 401 | 439 | 493 |
| 26 | 3.076 | 469 | 514 | 576 |
| 28 | 3.567 | 549 | 596 | 646 |
| 30 | 4.095 | 613 | 679 | 748 |
| 32 | 4.659 | 711 | 765 | 829 |
| 34 | 5.260 | 785 | 872 | 960 |
| 36 | 5.897 | 906 | 977 | 1060 |
| 40 | 7.280 | 1112 | 1200 | 1300 |
| 42 | 8.026 | 1210 | 1320 | 1430 |
| 46 | 9.628 | 1460 | 1580 | 1720 |
| 50 | 11.375 | 1720 | 1870 | 2030 |
| 54 | 13.268 | 2010 | 2180 | 2370 |
Scroll the table sideways to see all columns.
MBF = minimum breaking force at the stated wire tensile grade (N/mm²). Weights are nominal. Diameters outside 18–54 mm and non-standard grades are manufactured to order — request a quote.

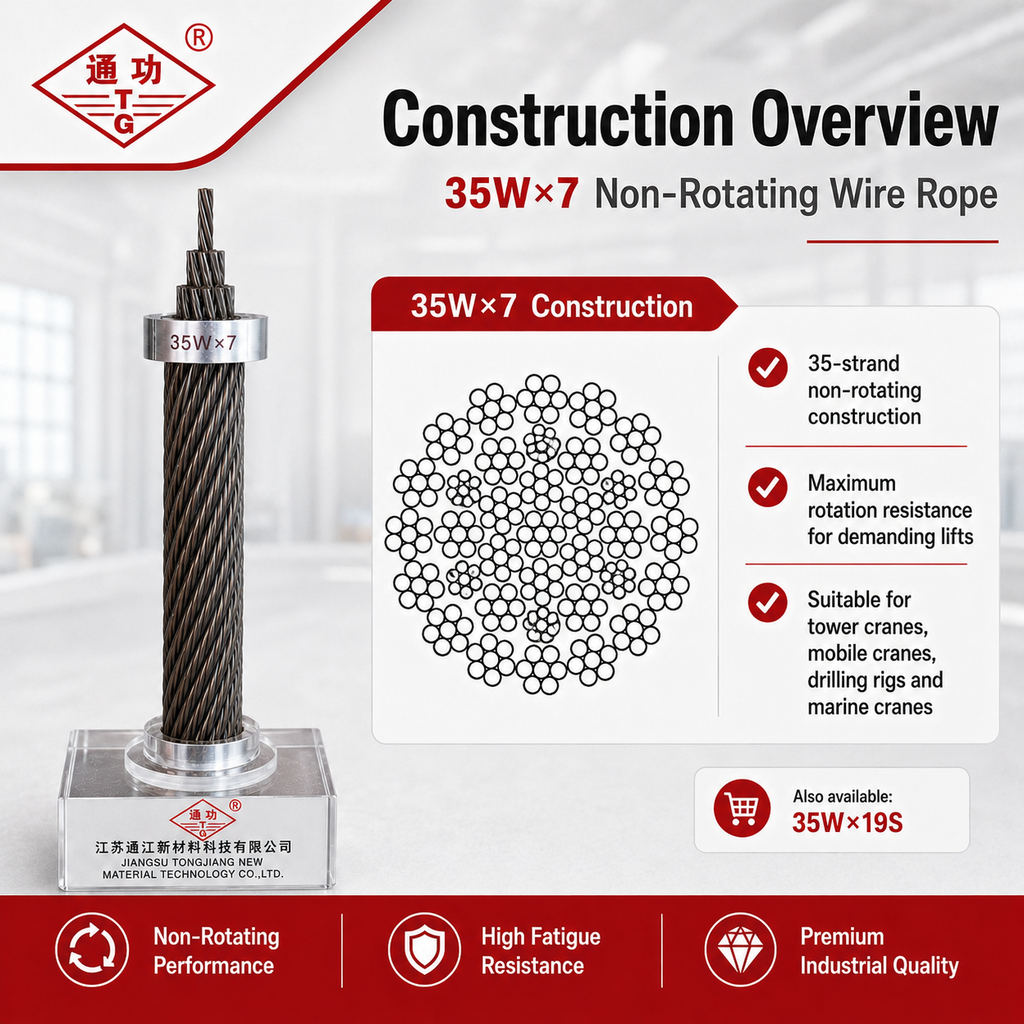

About this construction
Why 35 strands?
More strands in more opposing layers means more complete torque cancellation. 35W×7 is the most rotation-resistant construction in the range, which is what you want on a long single-part lift where the load has nothing to stop it turning.
Why does the range start at 18 mm?
Fitting 35 strands into a smaller diameter makes each strand very fine and fragile. Below 18 mm the 18-strand and 19-strand constructions do the job better.
Is it as strong as a 6-strand rope?
Not at the same diameter. Dividing the steel across more strands costs some breaking force, and you're buying rotation resistance and flexibility with it. If you need maximum force as well as rotation resistance, look at the compacted 35W×K7.
How does it compare to 35W×K7?
35W×K7 has compacted strands, so it carries more load at the same diameter and resists drum crushing better. 35W×7 is the standard-strand version, and the sensible choice where those gains aren't worth the cost difference.
Selecting 35-strand rope
Maximum rotation resistance

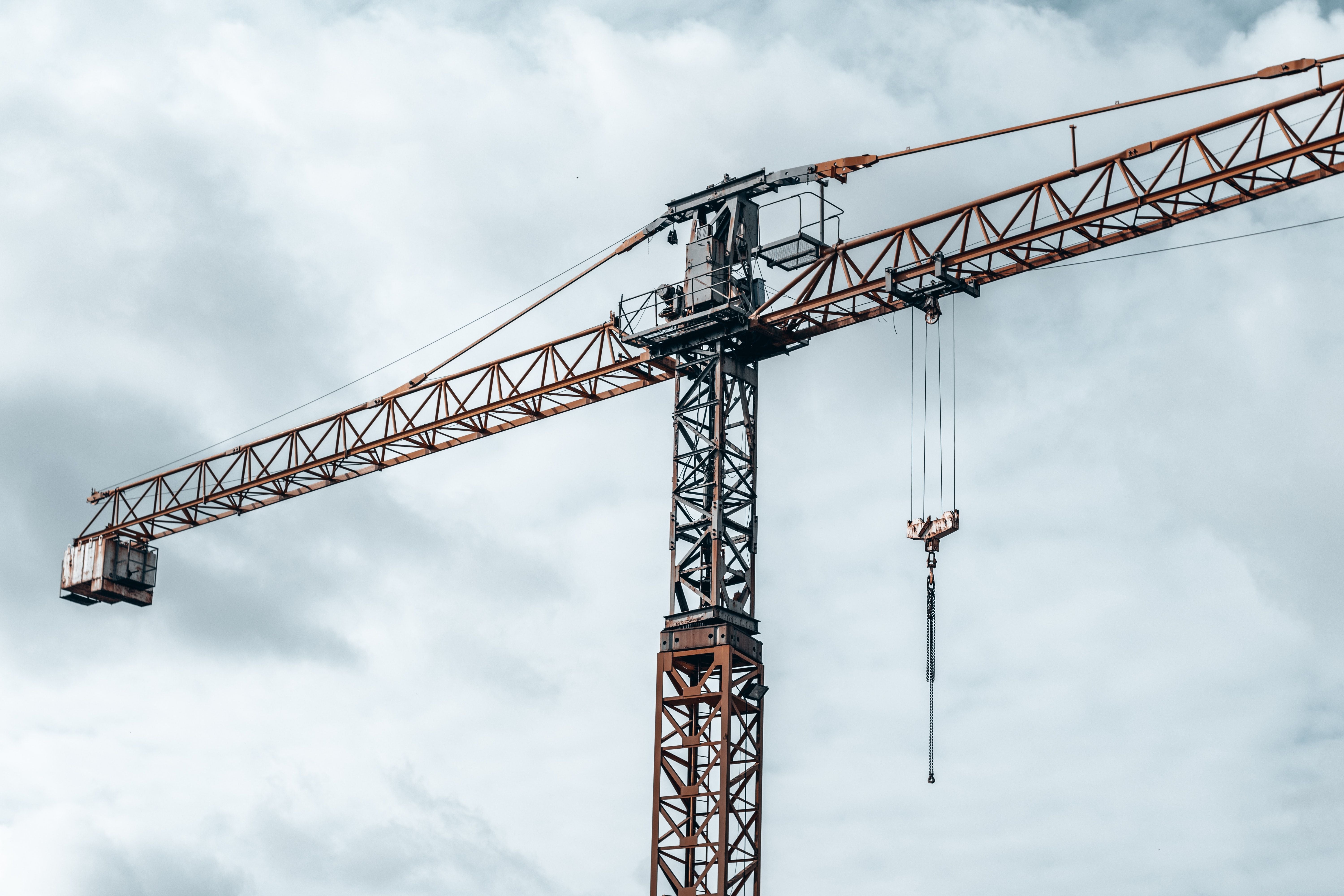

Thirty-five Warrington strands in opposing layers cancel torque more completely than any other construction we make. It's the rope for long single-part lifts on tower cranes, mobile cranes and drilling rigs, where a spinning load is a hazard rather than an inconvenience.
Manufacturing
Drawn, stranded and closed in-house
Every rope starts as Baosteel or Shagang wire rod and runs through our own servo-driven drawing and planetary stranding machines. German Fosser lubricant is applied at closing, and each rope is tensile tested against its declared breaking force before it ships.
Ordering
Cut, reeled and shipped to spec
Reels run to 3,000 m, with custom lengths cut to order. Every shipment carries a mill certificate and test report, packed for sea freight and shipped CIF from the Yangtze Delta.
MOQ 1,000 m, negotiable.
